Pondus

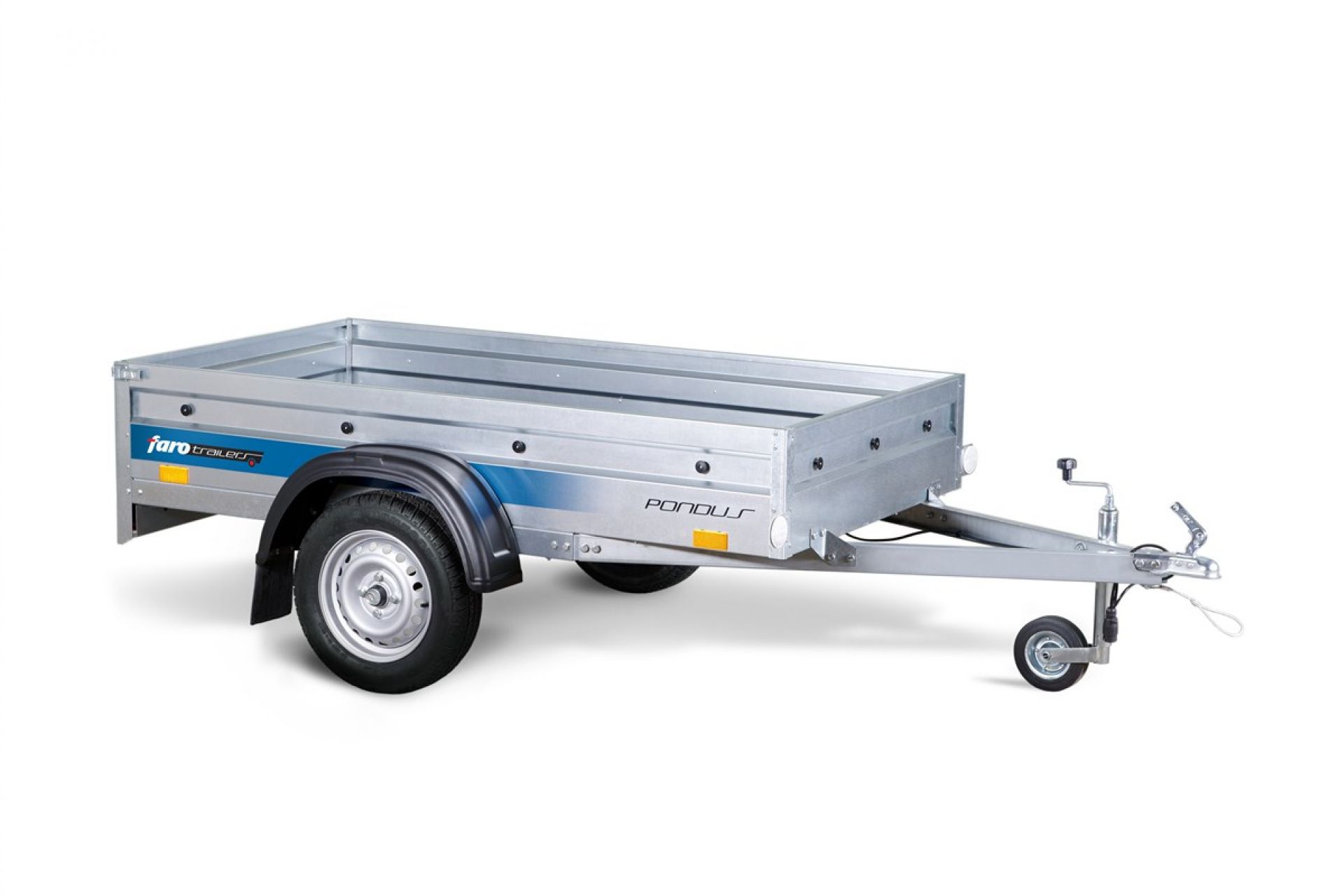

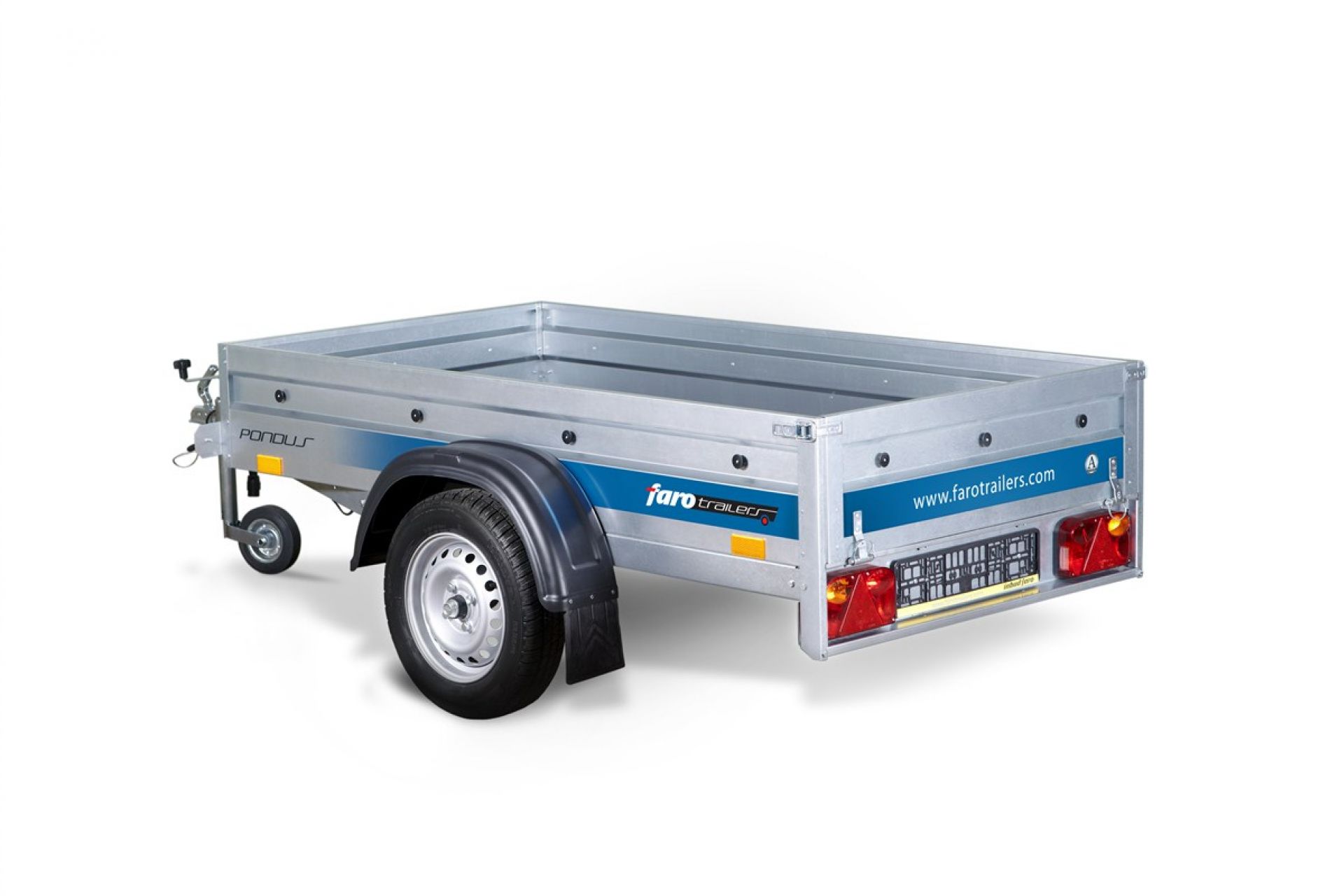

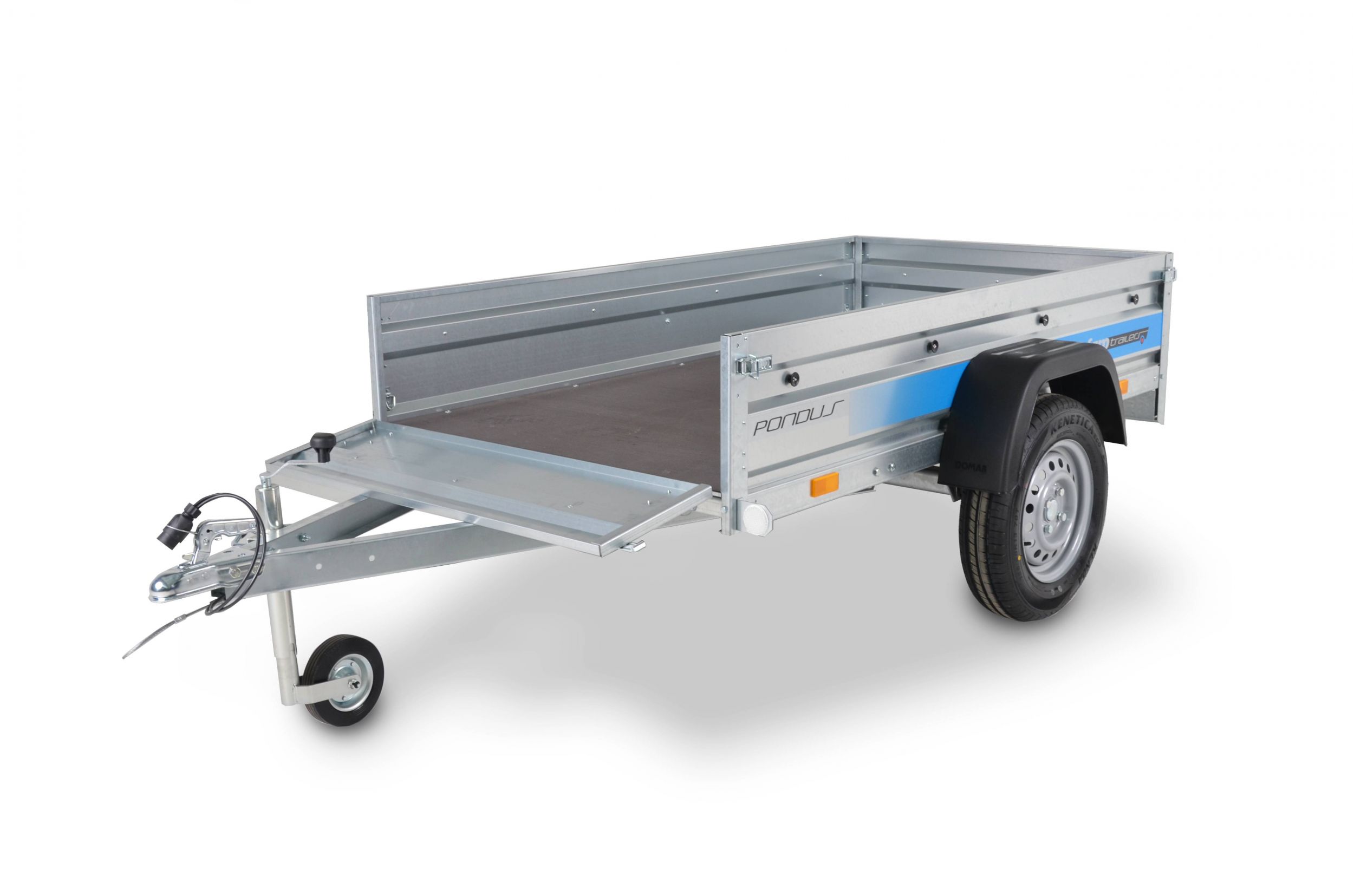

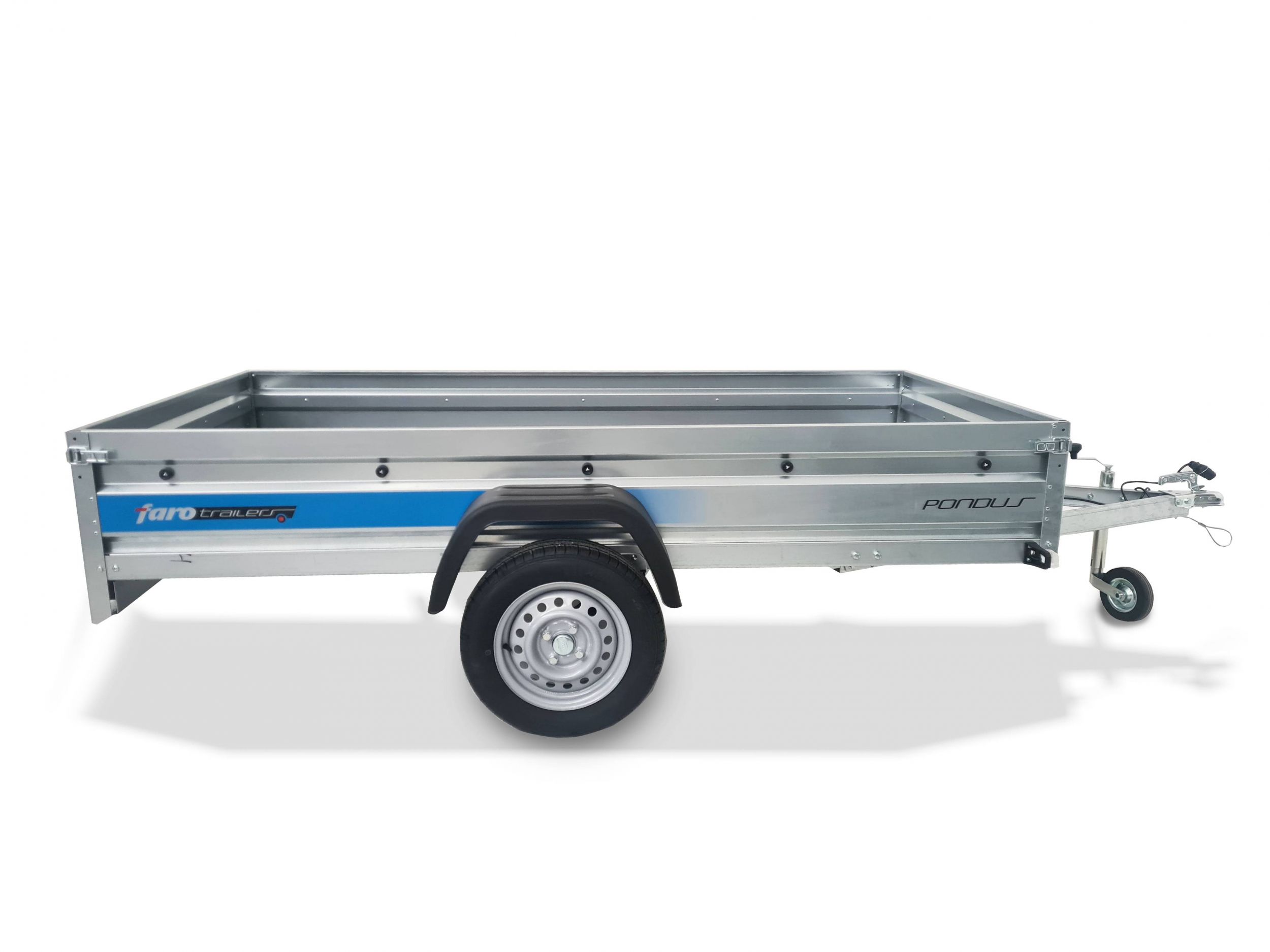

Product description Pondus

PONDUS is a light trailer suitable for a clients looking for a small and functional option in economic price. The trailer was made of a sheet SGD220-Z275 who’s thickness of zinc coat equals 275g/m2 (A class). This kind of material is characterized by very good corrosion and oxidation resistance. It joins good look with steel strength. Bolted construction of a trailer simplifies elements replacement- used during the regular exploitation. Screws class 8.8 were used to build this trailer. It’s suspension is a torsional axis with mounted compact bearings (double row angular ball bearings). This kind of bearings were designed for a distant mileage. Sealed and greased they don’t require any regulations or maintenance. Double sealing of the bearings protect them from dirt and water.

Standard equipment:

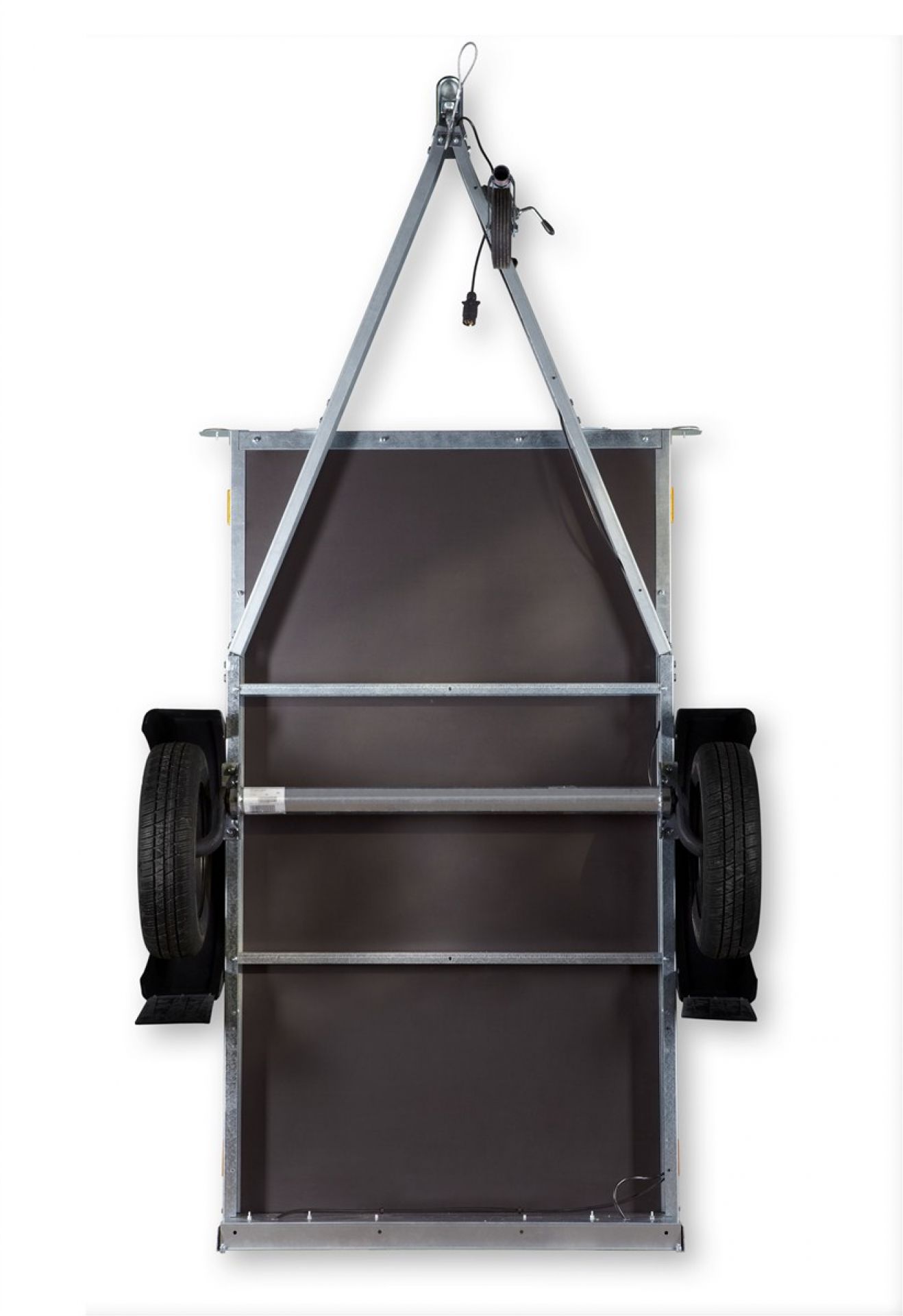

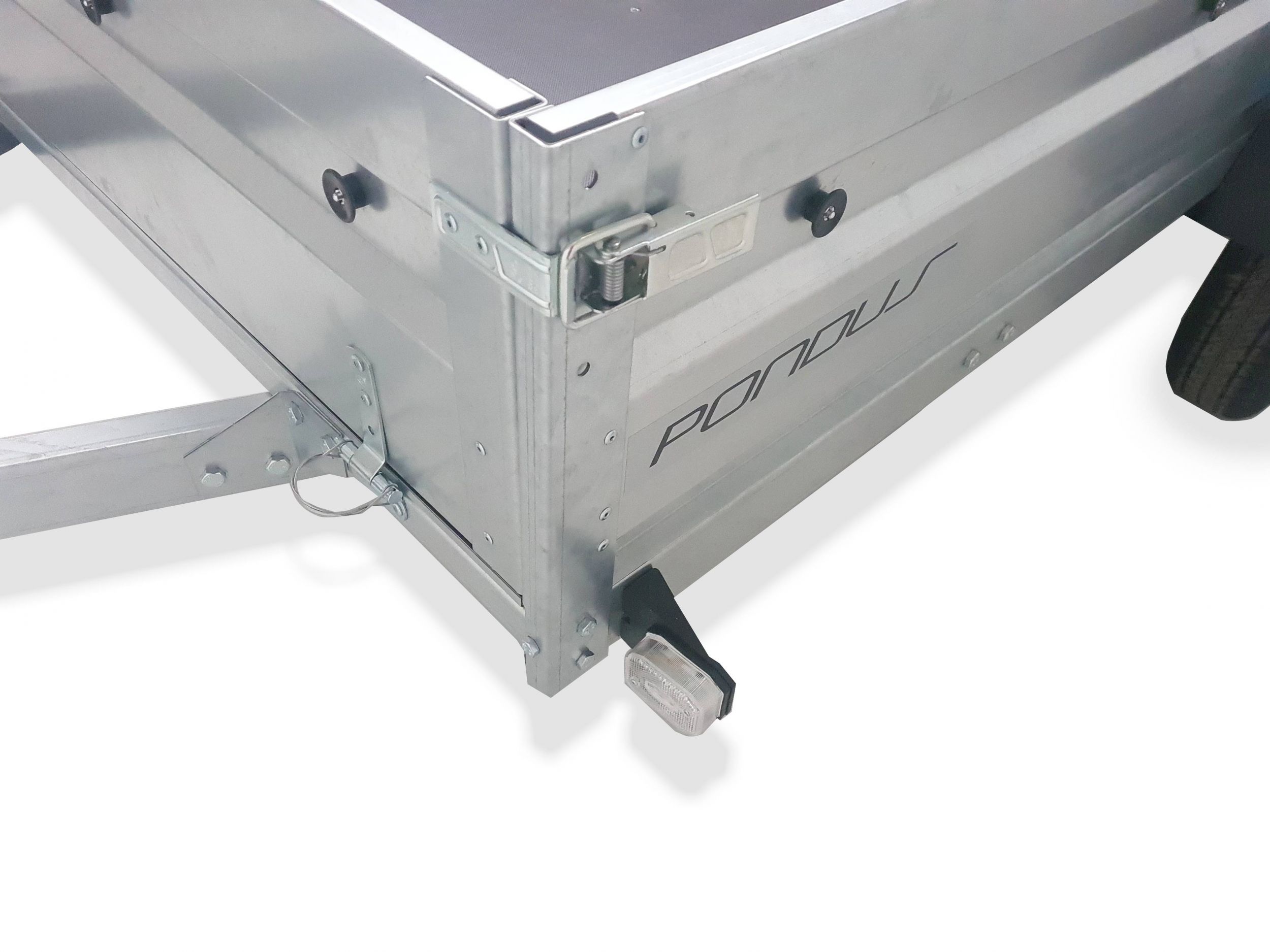

  • frame and shaft of a trailer was made of a bent galvanized 2mm sheet (A class)

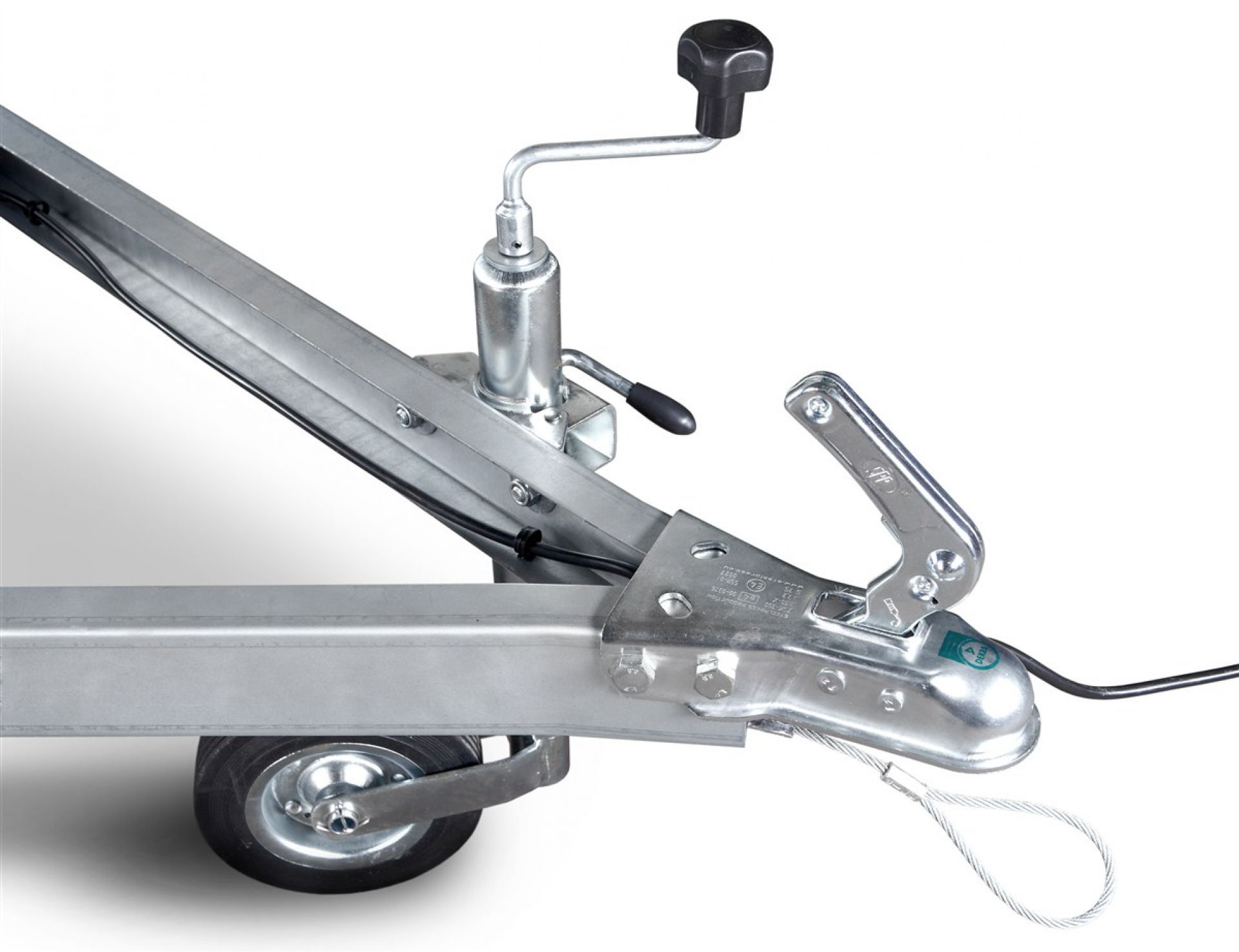

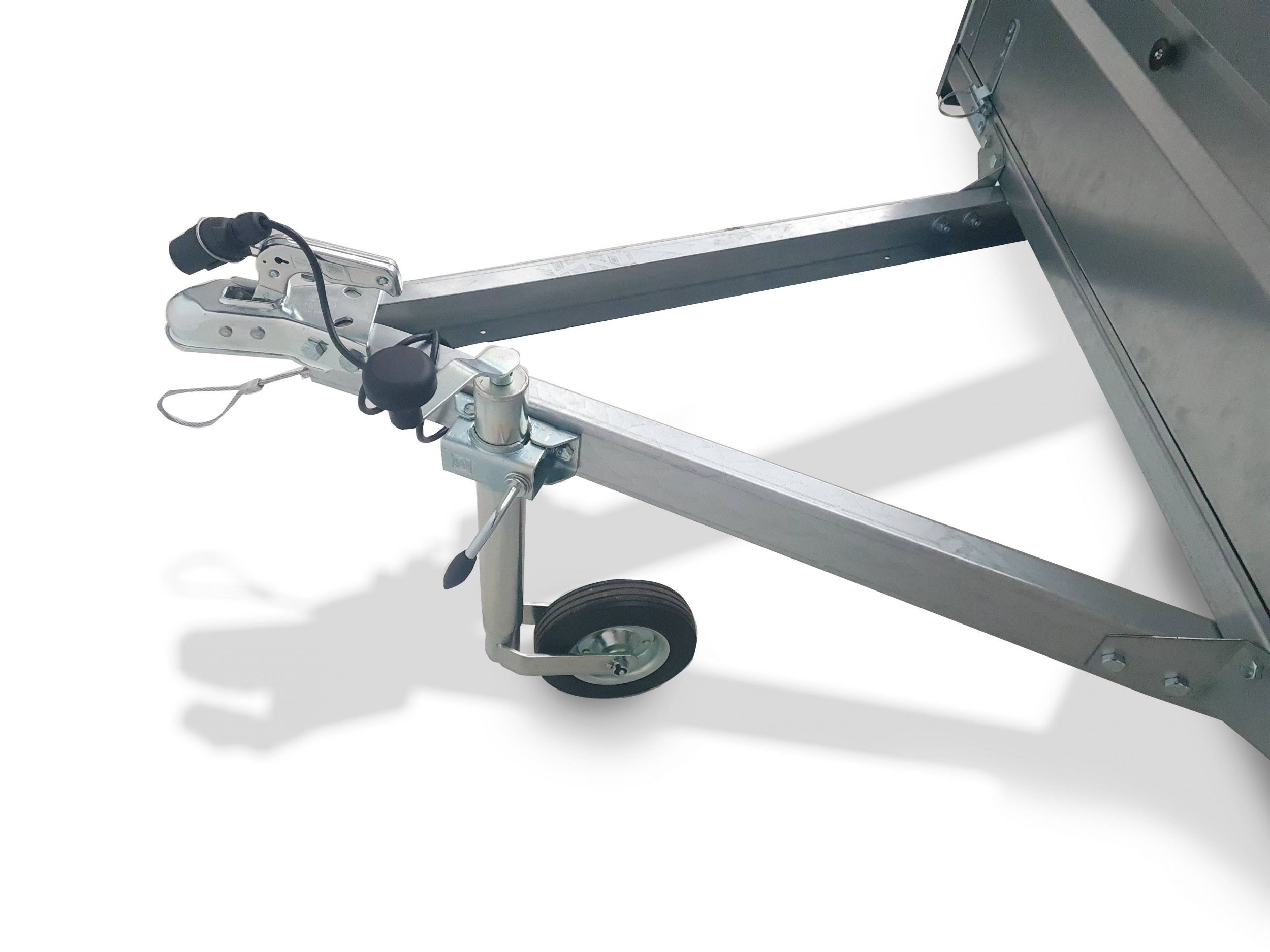

  • towing hitch ball 750 kg made by STEELPRESS

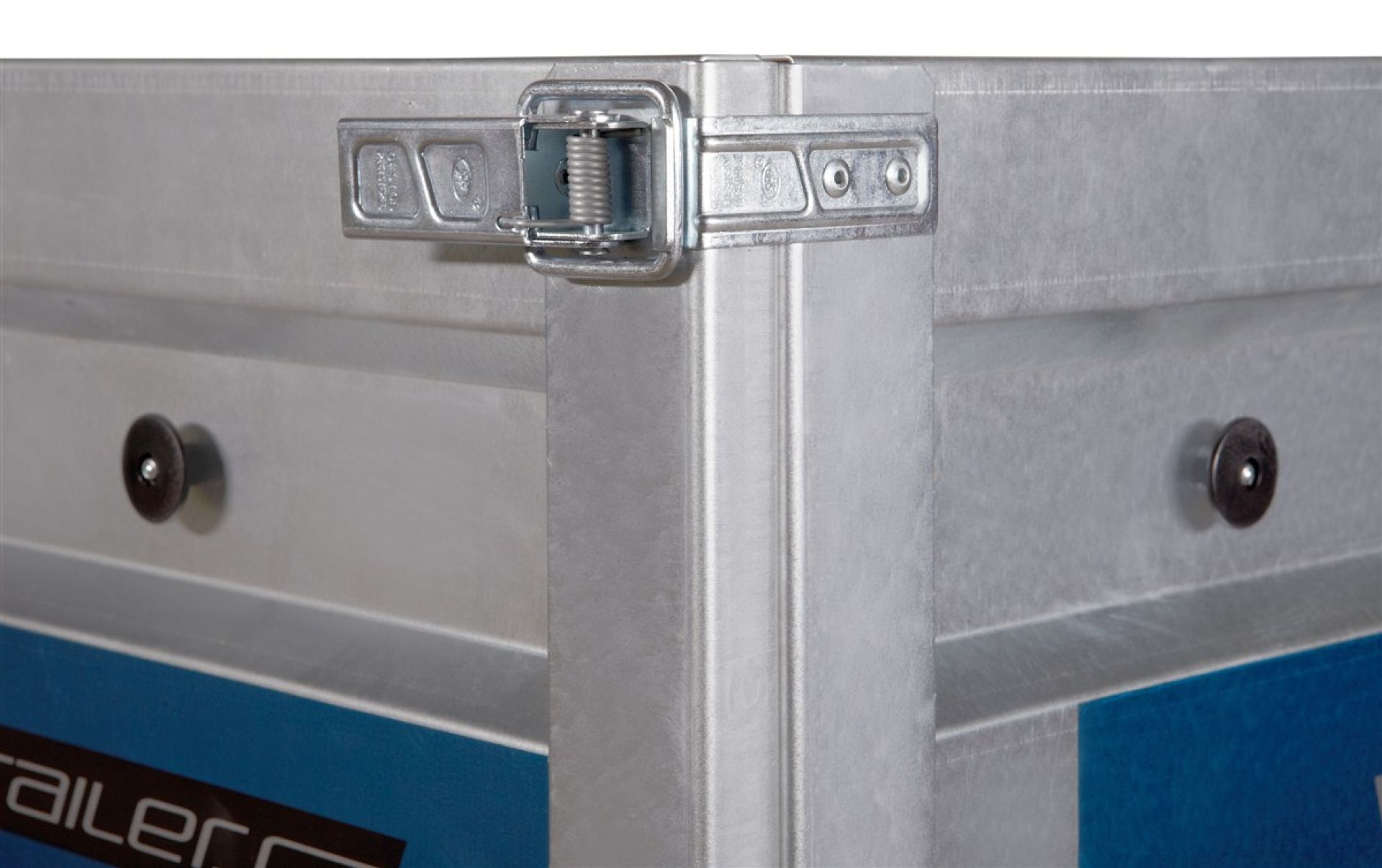

  • trailer’s sides H-320mm , made of galvanized sheet – thickness 1,25 mm
  • front side is attached permanently

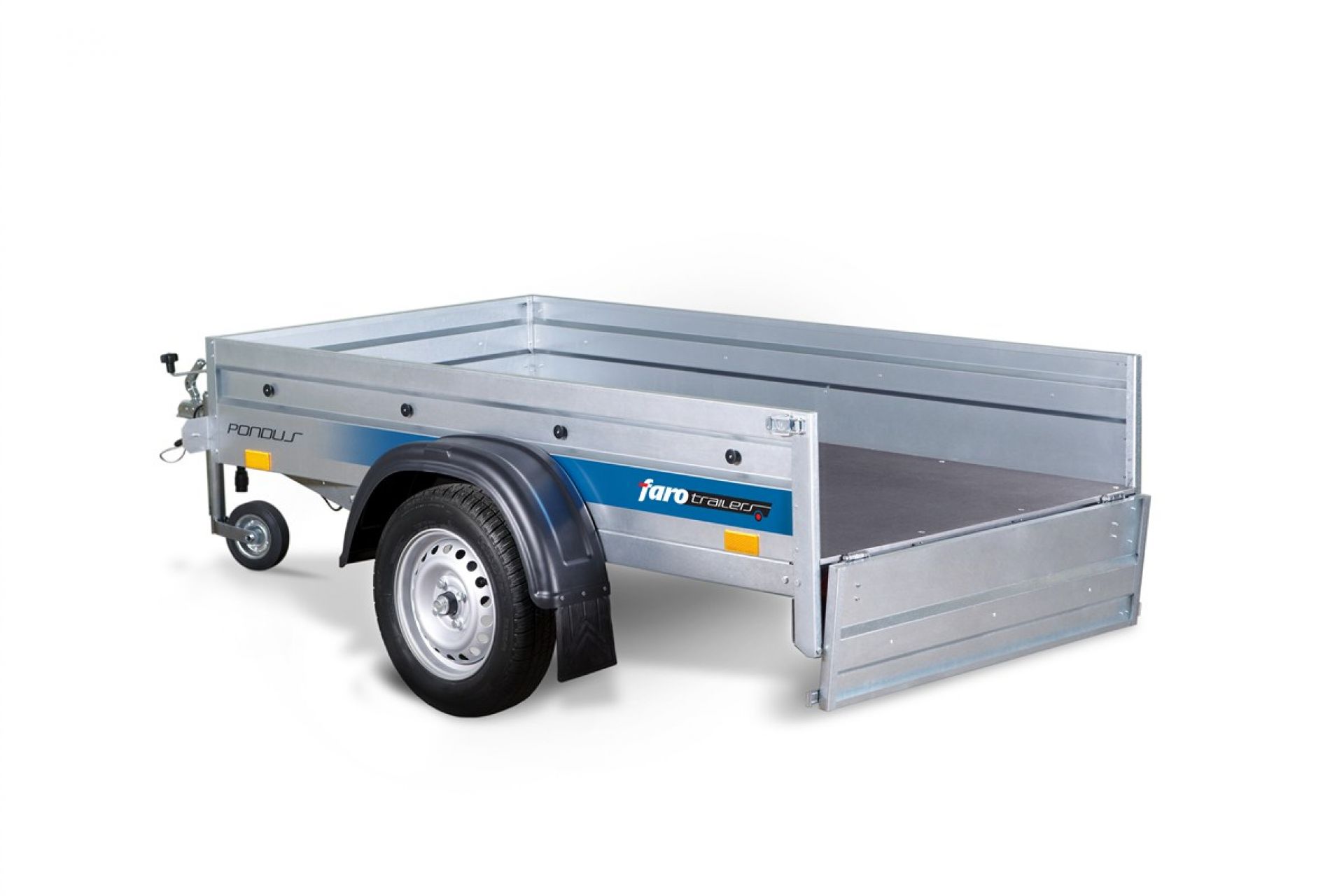

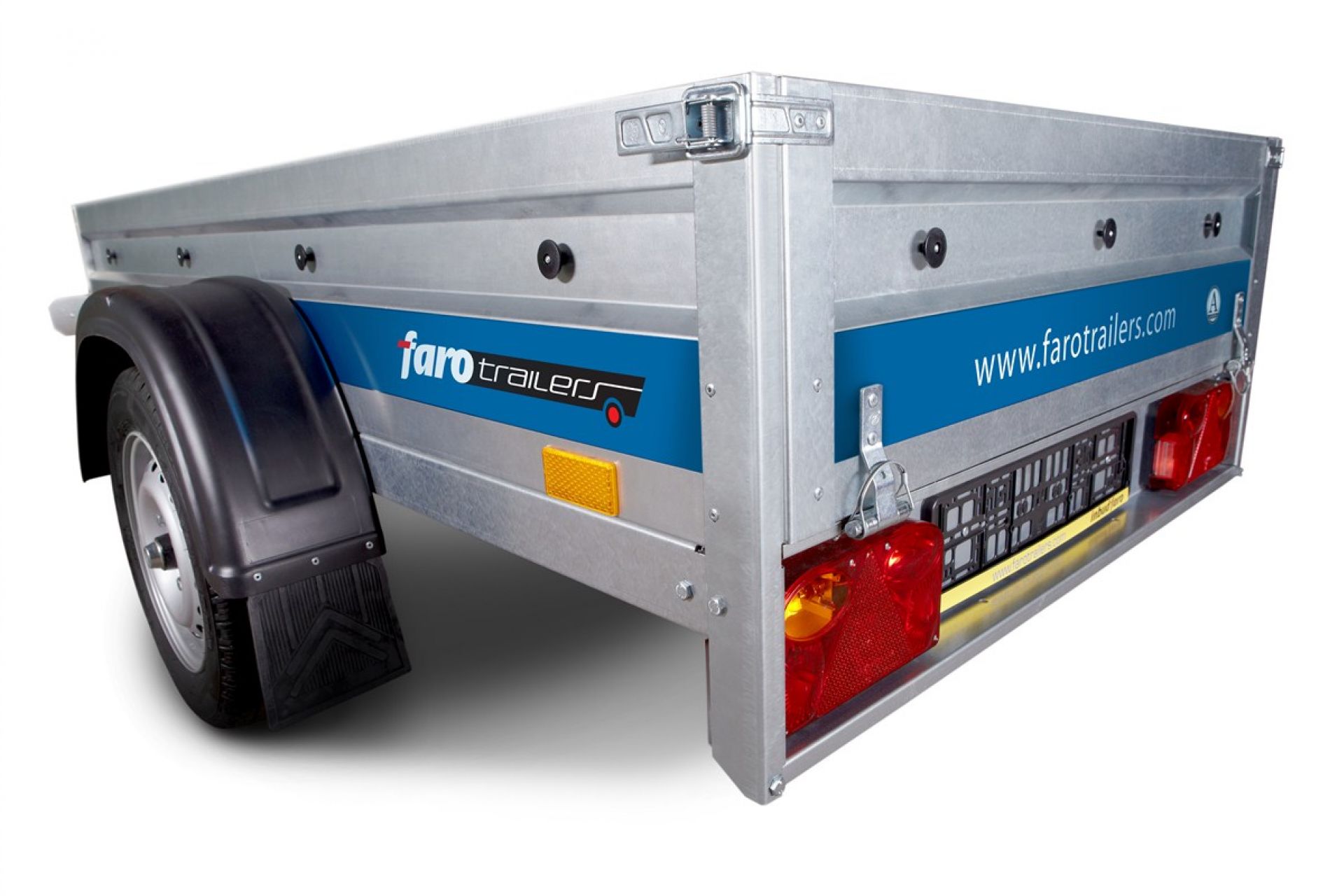

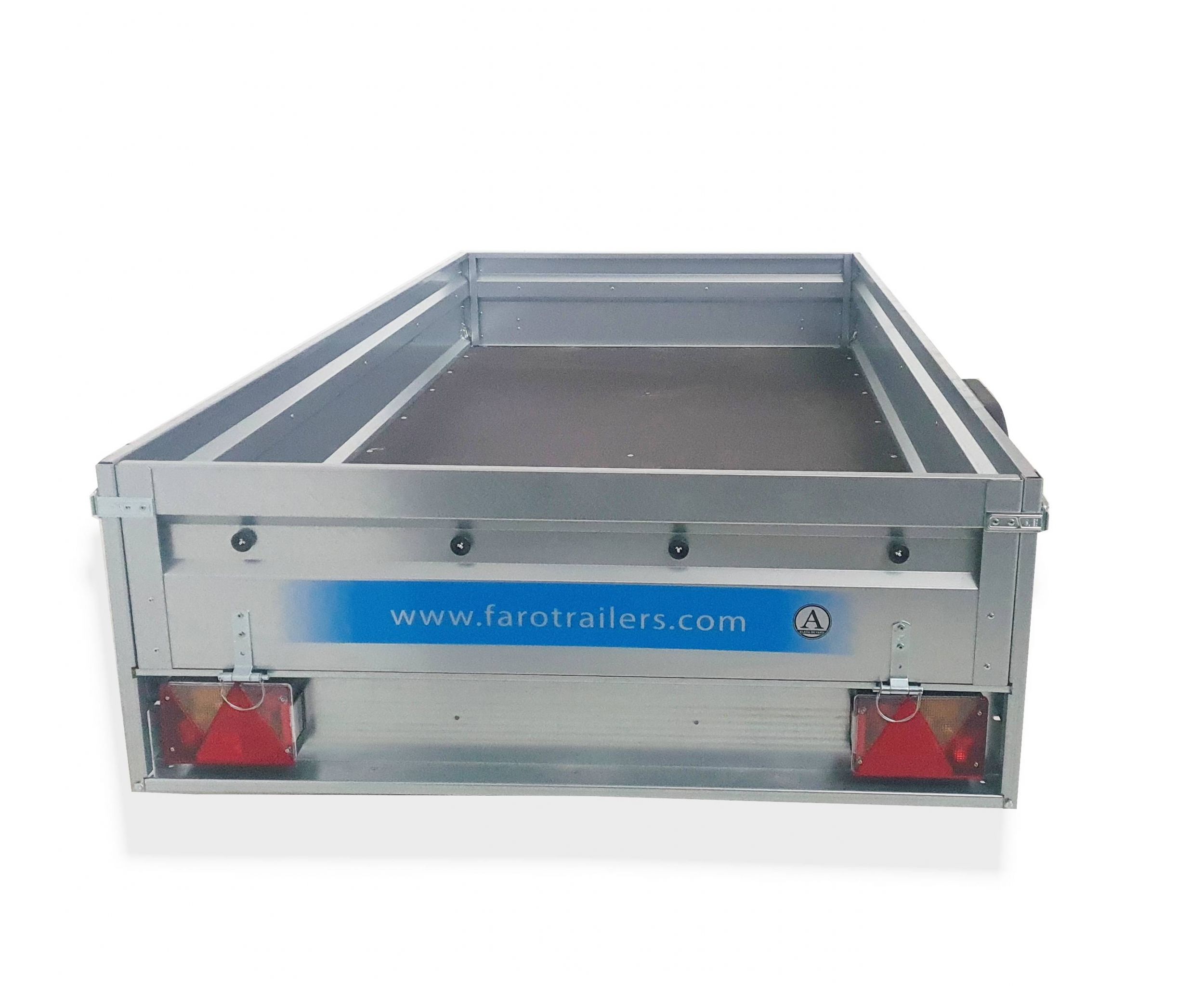

  • back side is tiltable

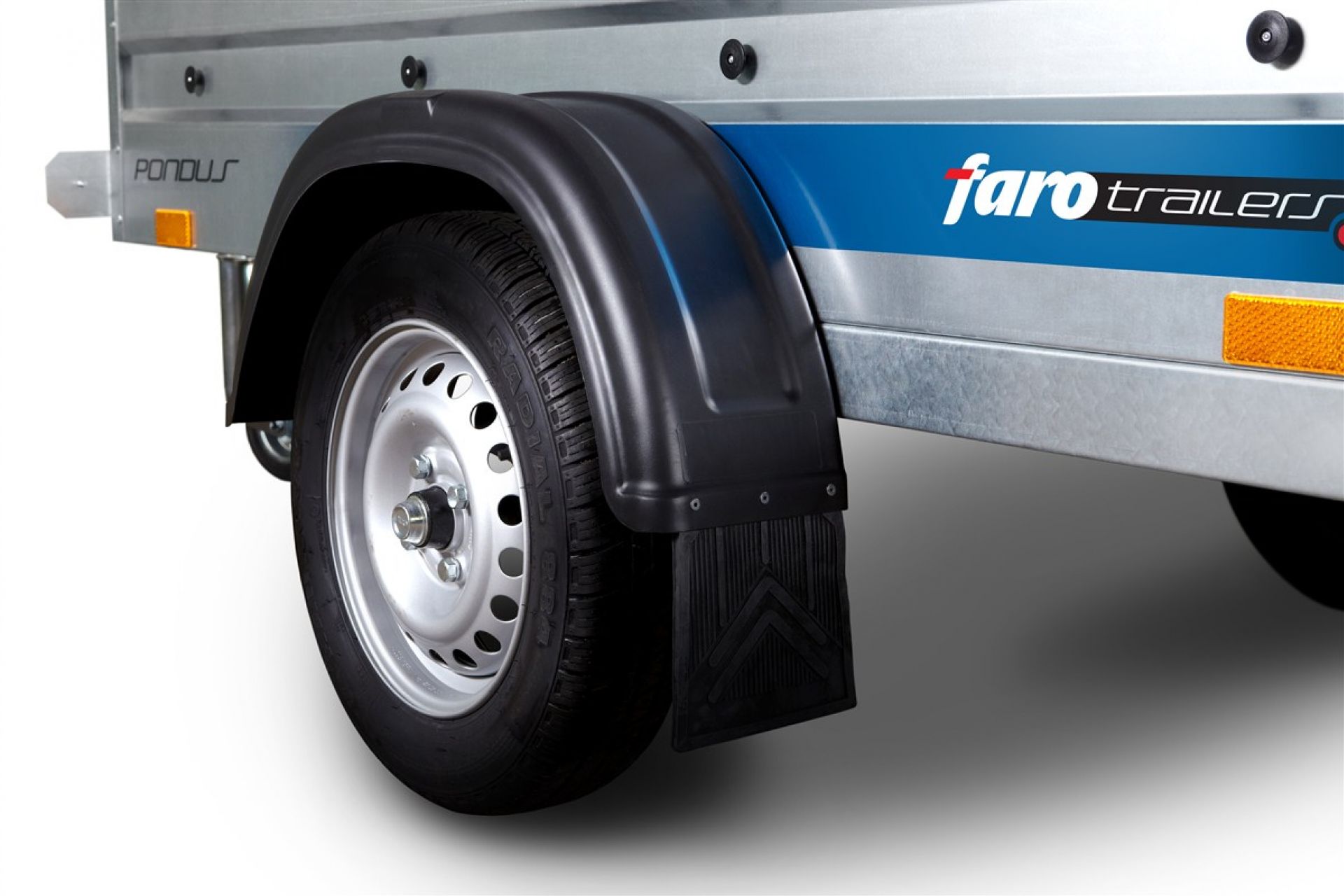

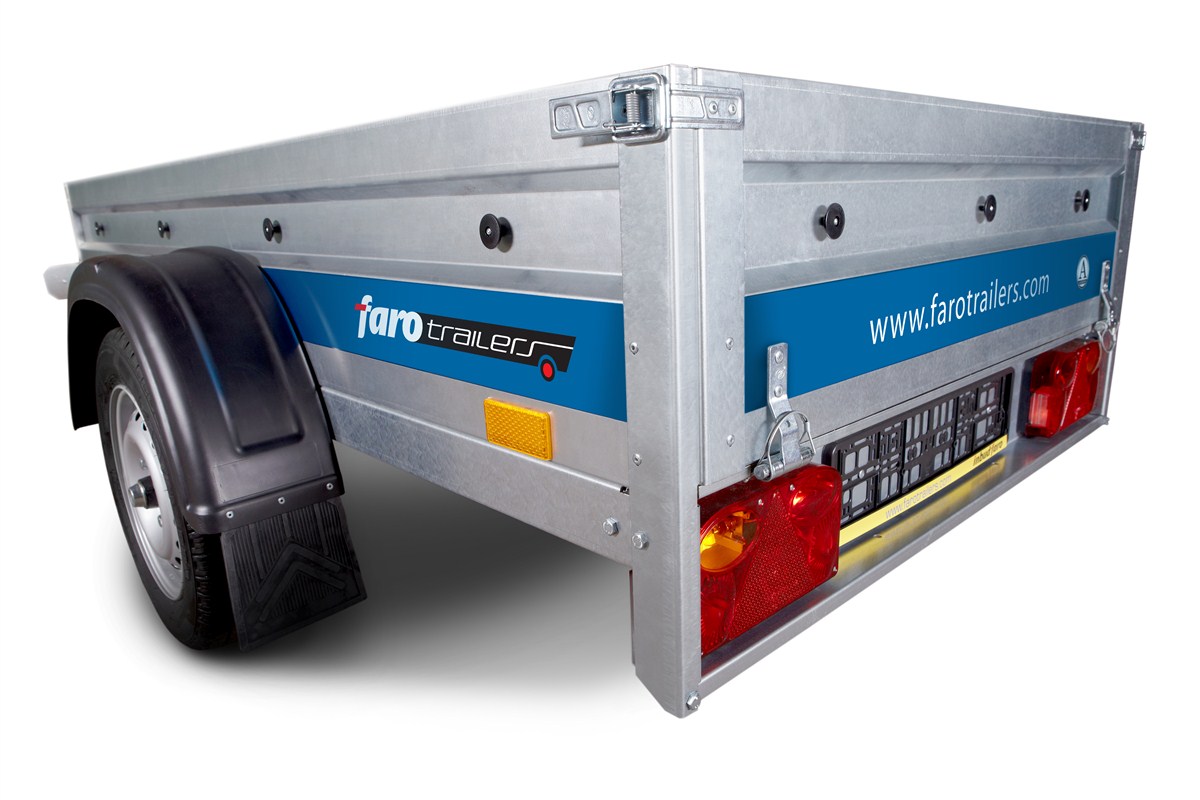

  • mudguards with mudflap are made of polyethylene material

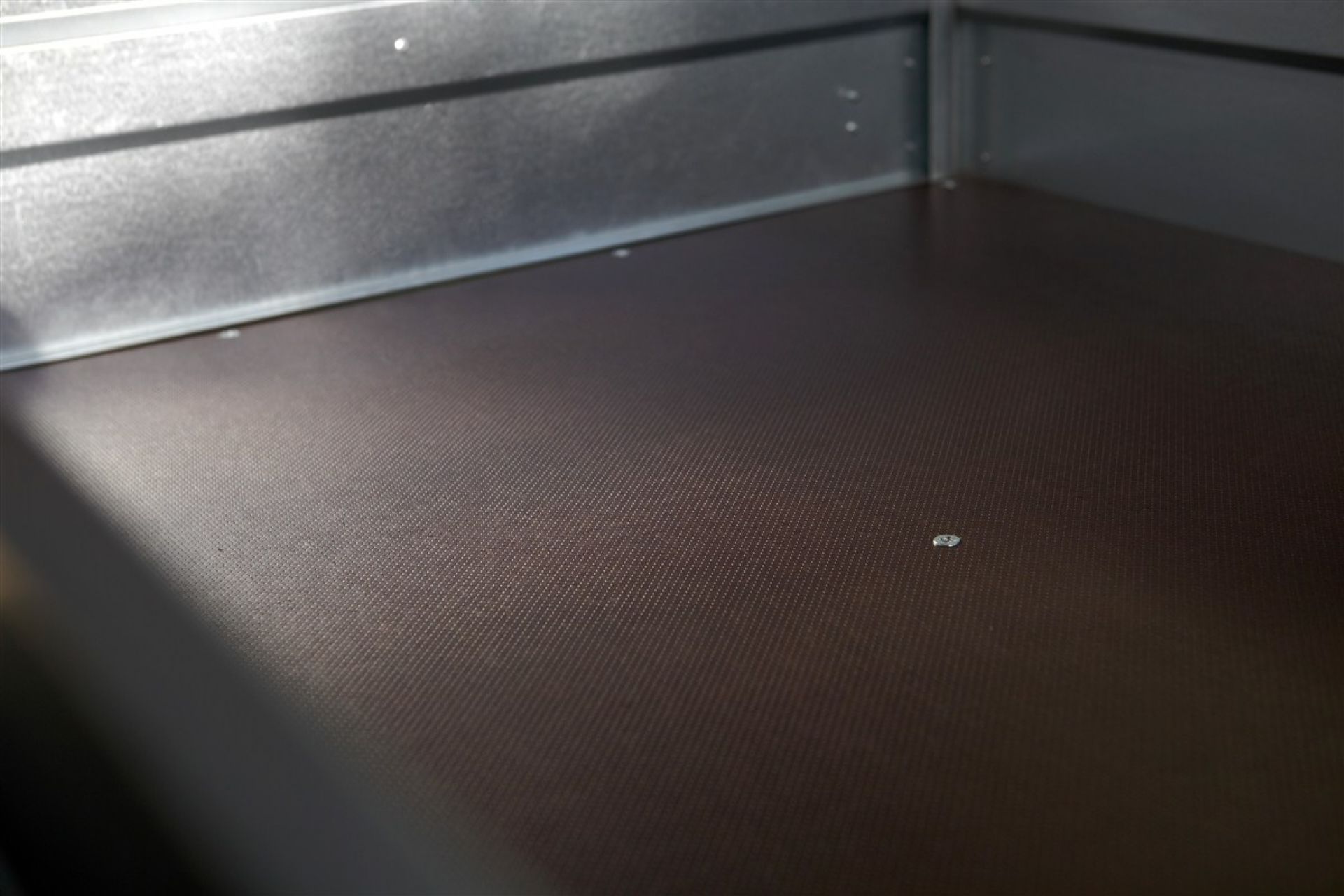

  • floor is made of waterproof non-slippery plywood – thickness 9 mm
  • wheels 155/70R13
  • jockey wheel

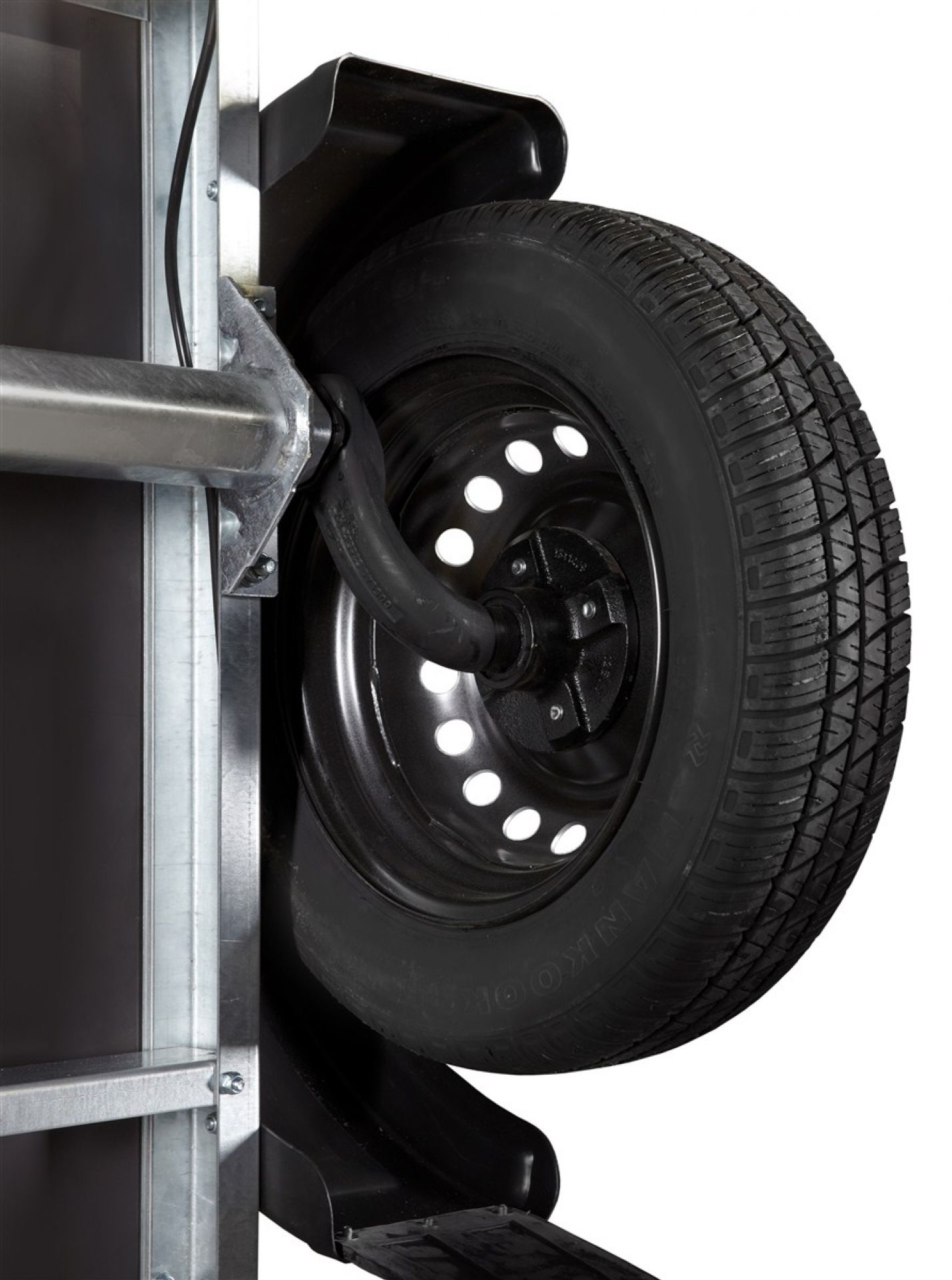

  • STEELPRESS, KNOTT OR AL-KO unbraked torsional axle (double row angular ball bearings)

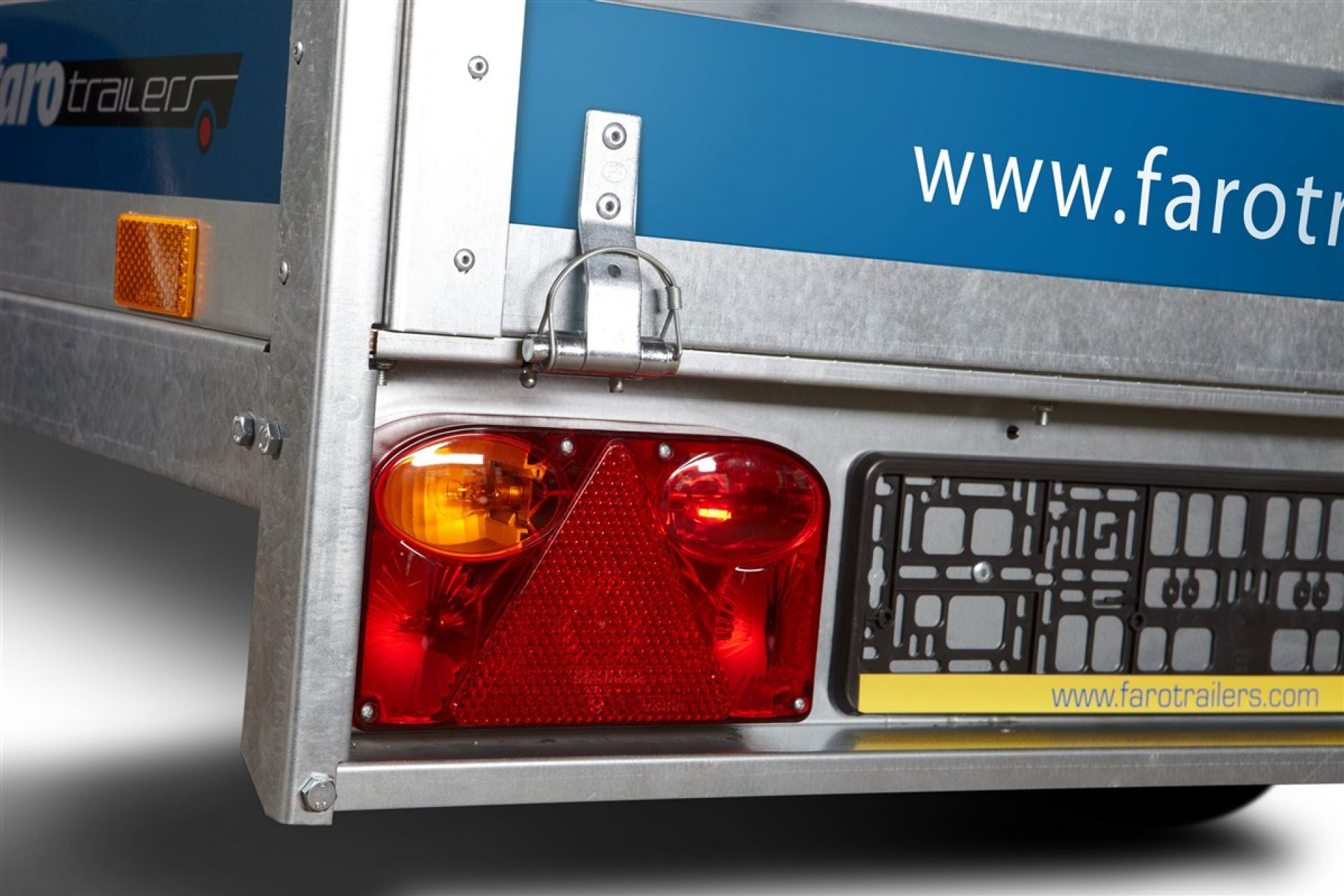

  • electrical installation 12V (in accordance with traffc regulations)
  • 7 pin plug

Additional equipment:

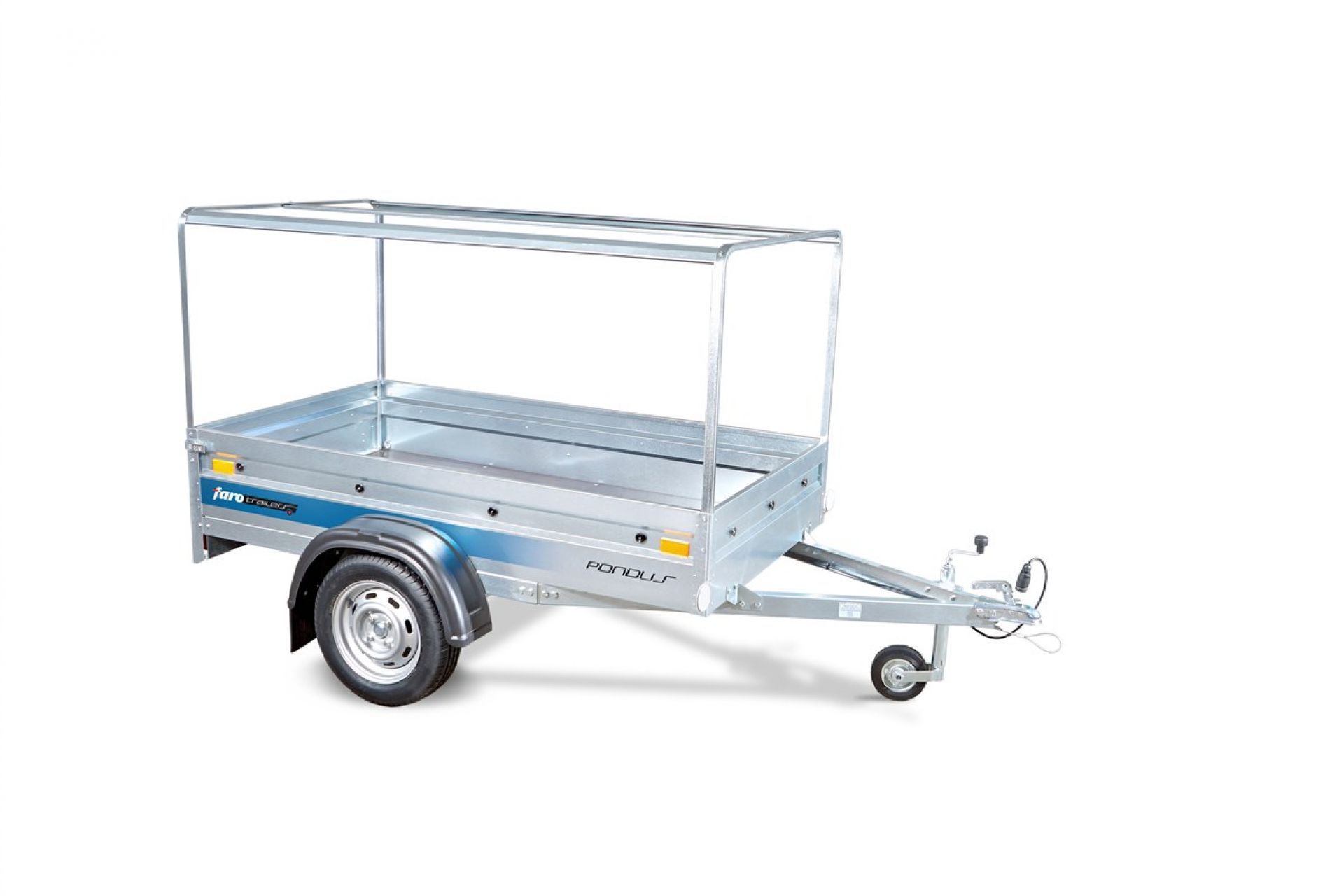

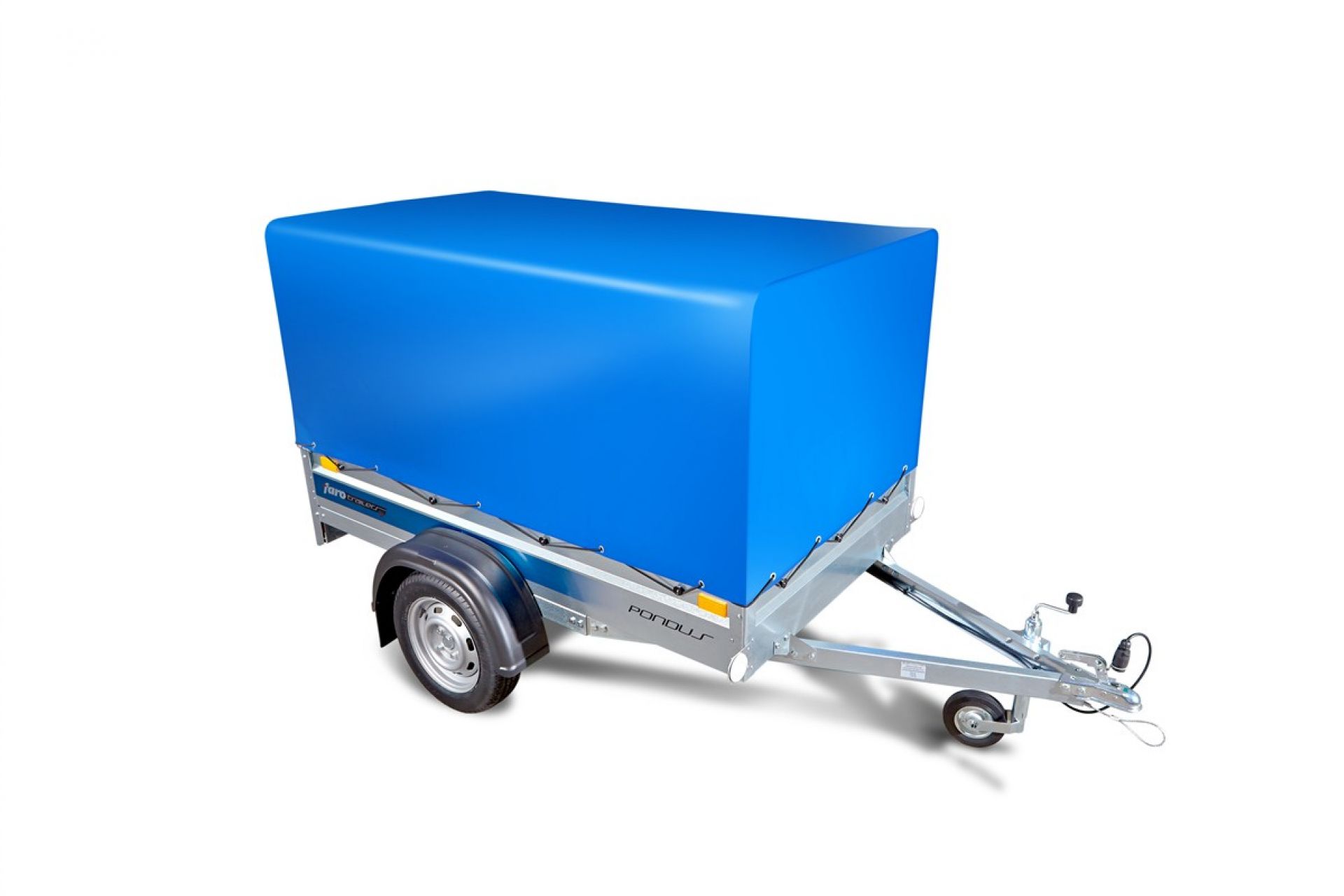

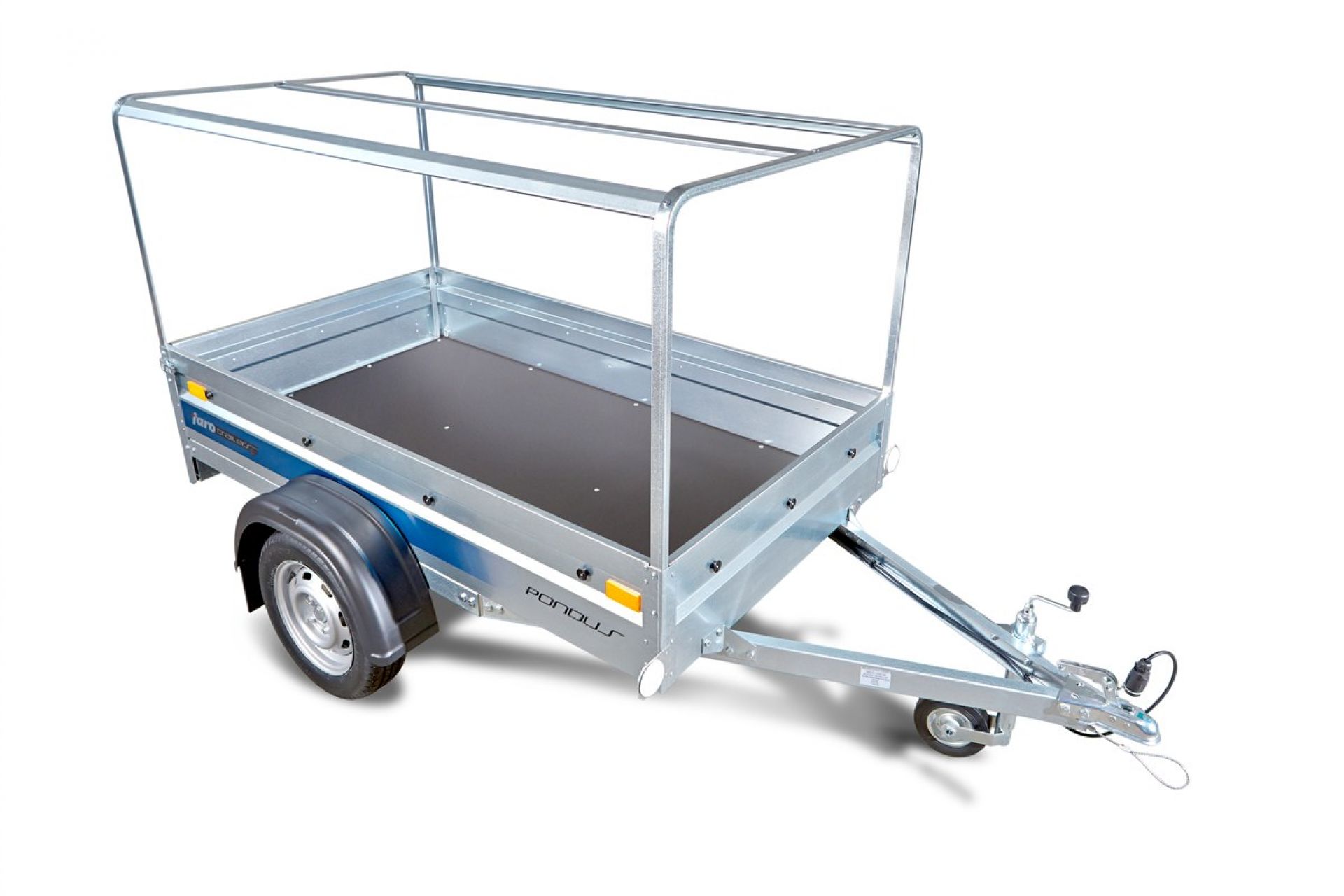

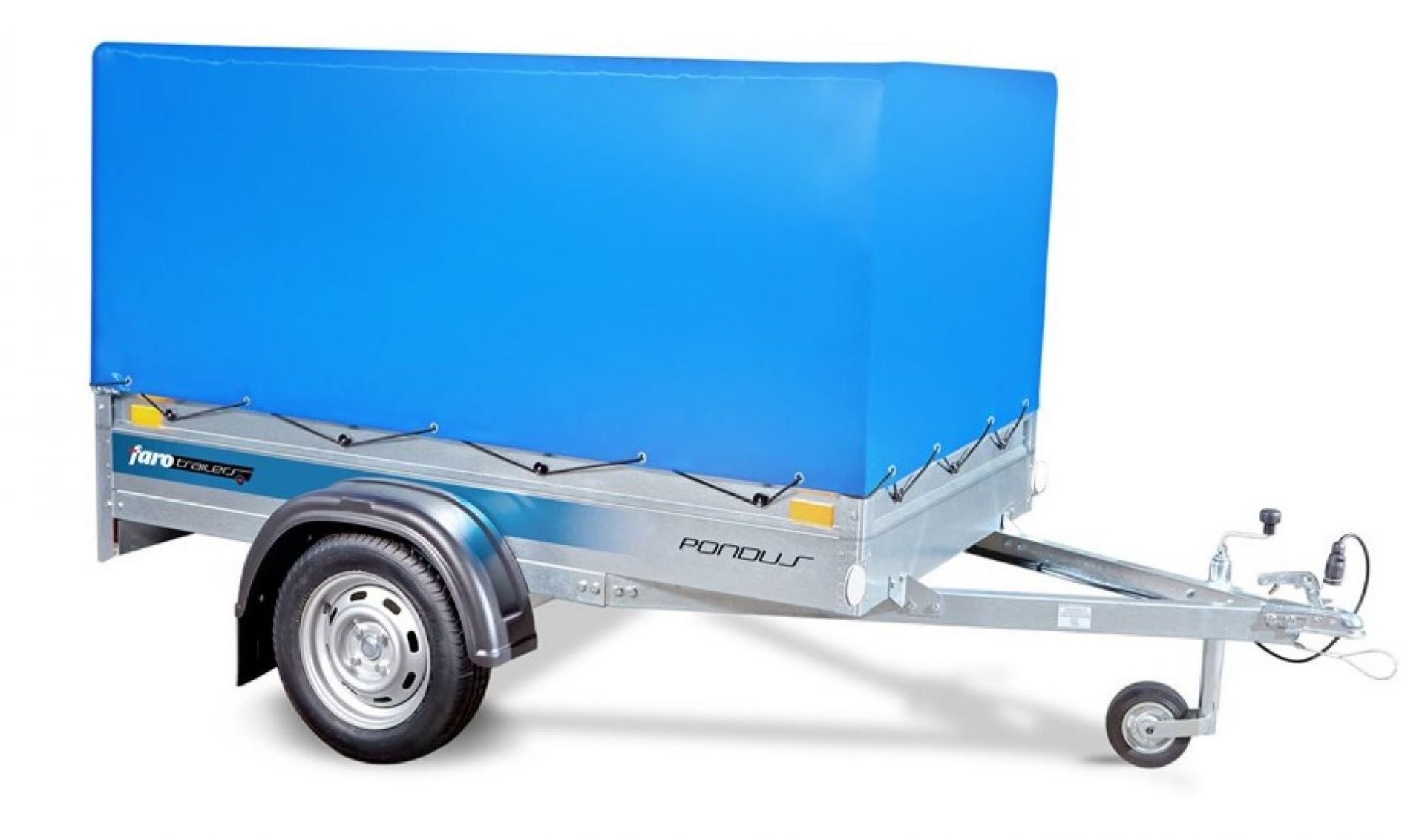

  • the frame with a cover

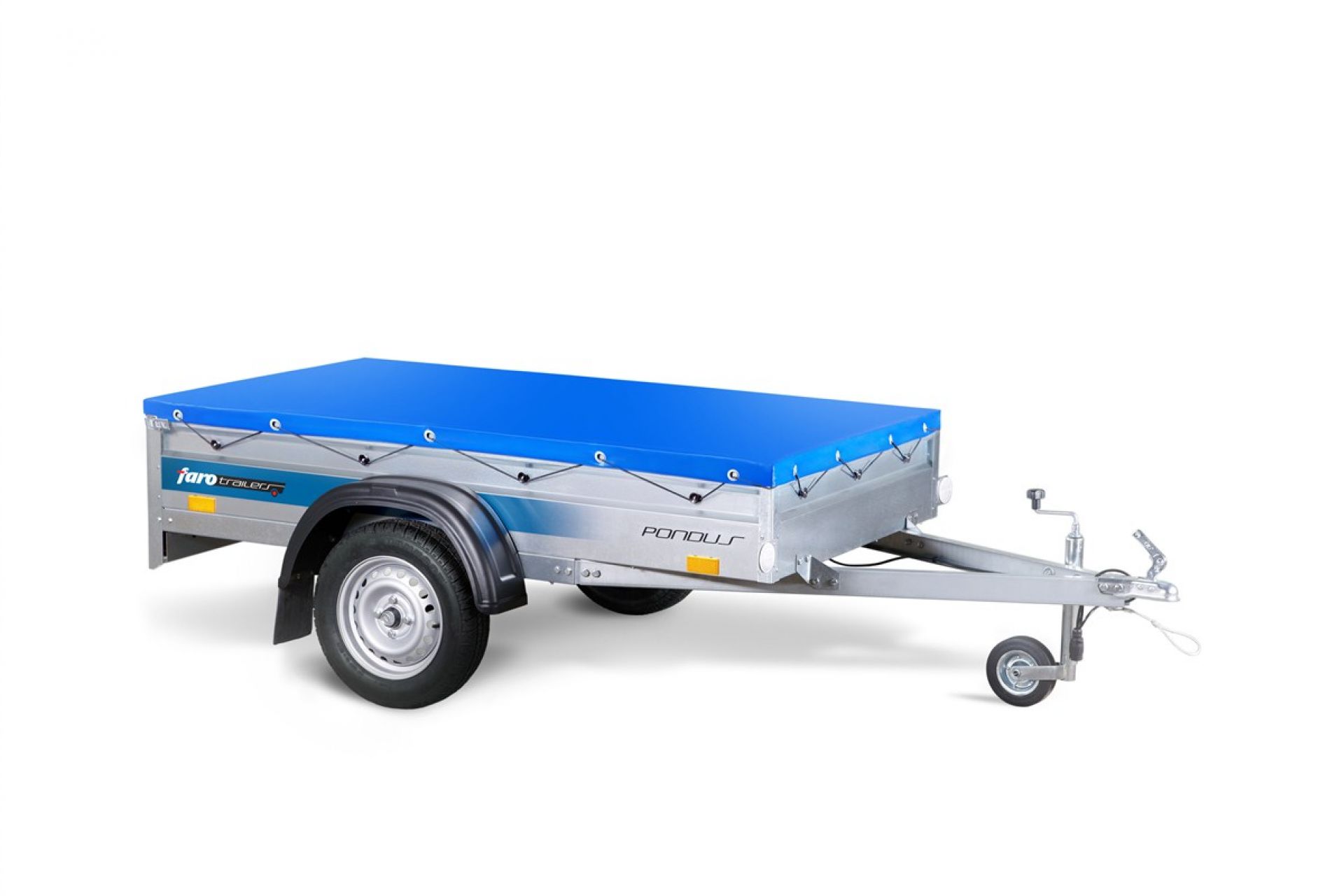

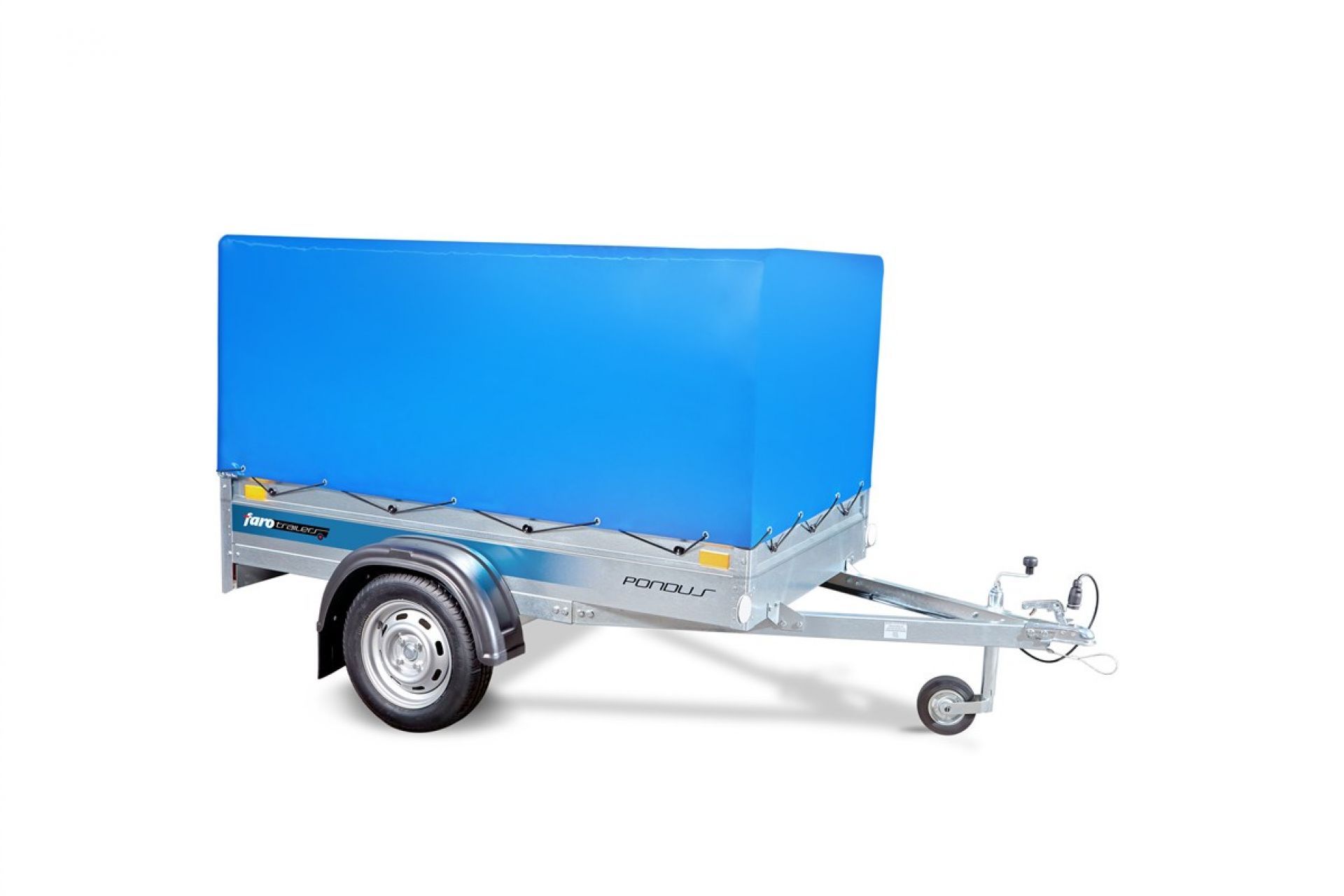

  • flat cover
  • mesh sides extension
  • sides extension

Additional informations:

  • EU homologation (possibility of registration in any EU country)
  • 2 years warranty



This offer is solemnly for information. Considering constant development of our company the producer keeps the right to changes and technical modifications.

Product specification of Pondus

ParameterValue
Side height (cm)32
Permissible gross weight min. - max. (kg)350 - 750
Suspension1 unbraked axle 750kg
Wheels155/70R13 or 165/70R13
Dimensions of cargo space (cm)153 x 112 / 165 x 112 / 205 x 112 / 205 x 125 / 220 x 125 / 236 x 125
Side height (cm)32
External dimensions of the trailer (cm)245 x 158 / 257 x 158 / 299 x 158 / 299 x 173 / 314 x 173 / 330 x 173
Permissible gross weight min. - max. (kg)350 - 750
Curb weight (kg)115 / 120 / 130 / 150 / 155 / 160
Capacity min. - max. (kg)190 - 590 / 195 - 595 / 200 - 600 / 220 - 620 / 230 - 630 / 235 - 635
Suspension1 unbraked axle 750kg
Wheels155/70R13 or 165/70R13

Ask about product

:
:
:
:

Recommend product

:
:
:

Error?

:
:
:

Product specification of Pondus

Dimensions of cargo space (cm) Side height (cm) External dimensions of the trailer (cm) Permissible gross weight min. - max. (kg) Curb weight (kg) Capacity min. - max. (kg) Suspension Wheels
153 x 112 32 245 x 158 350 - 750 115 235 - 635 1 unbraked axle 750kg 155/70R13 or 165/70R13
165 x 112 257 x 158 120 230 - 630
205 x 112 299 x 158 130 220 - 620
205 x 125 299 x 173 150 200 - 600
220 x 125 314 x 173 155 195 - 595
236 x 125 330 x 173 160 190 - 590
