Tractus

Product description Tractus

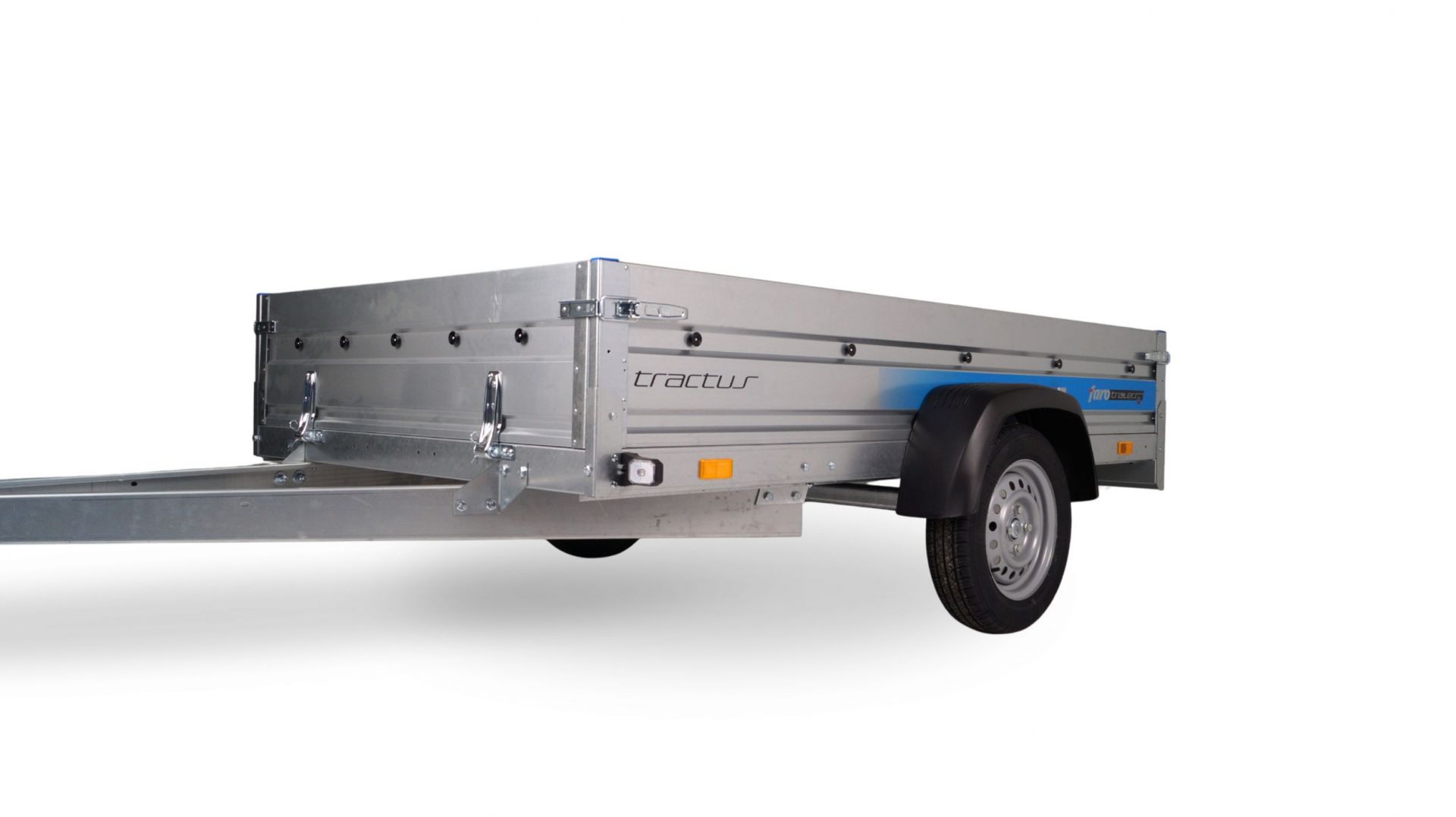

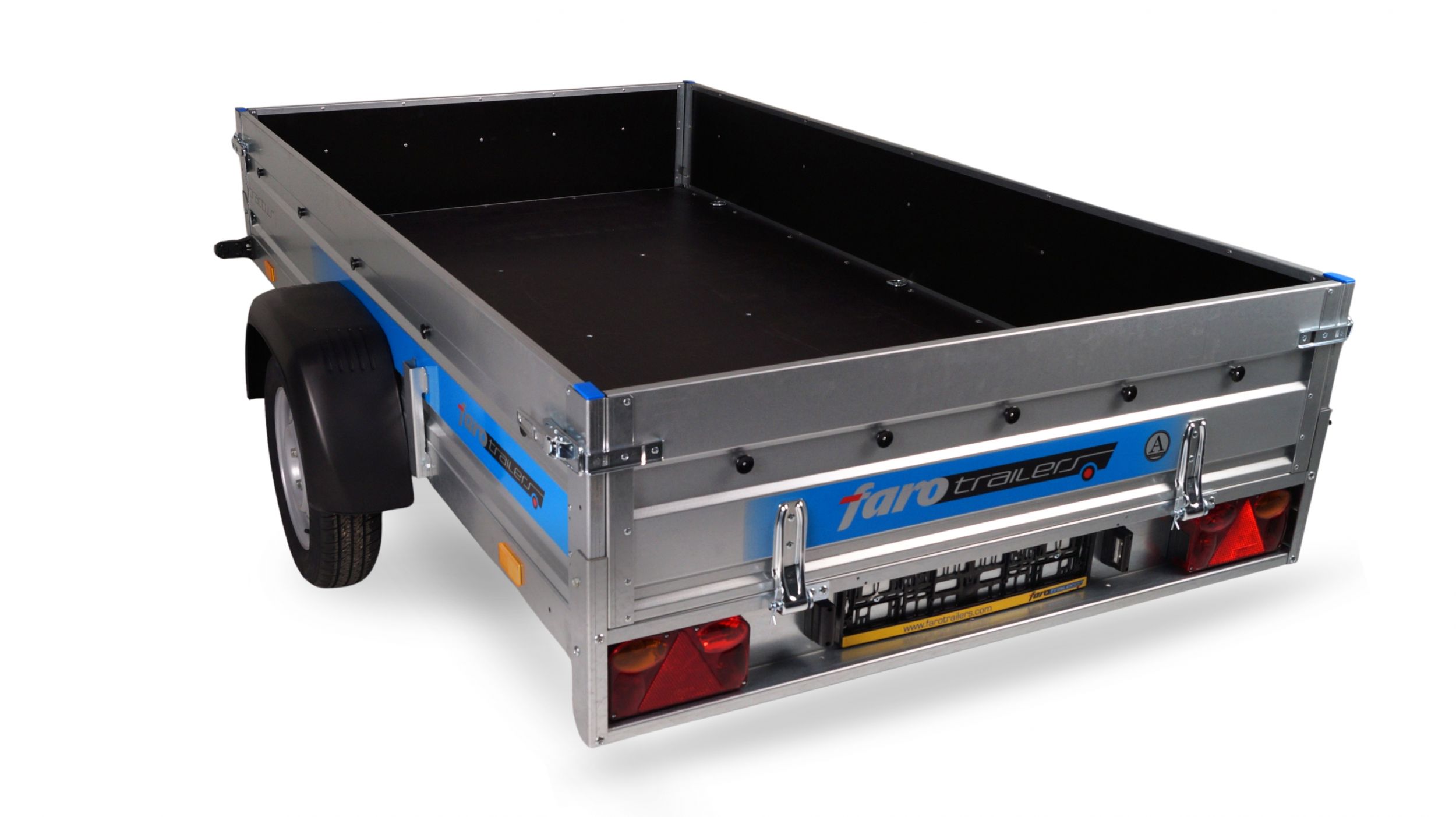

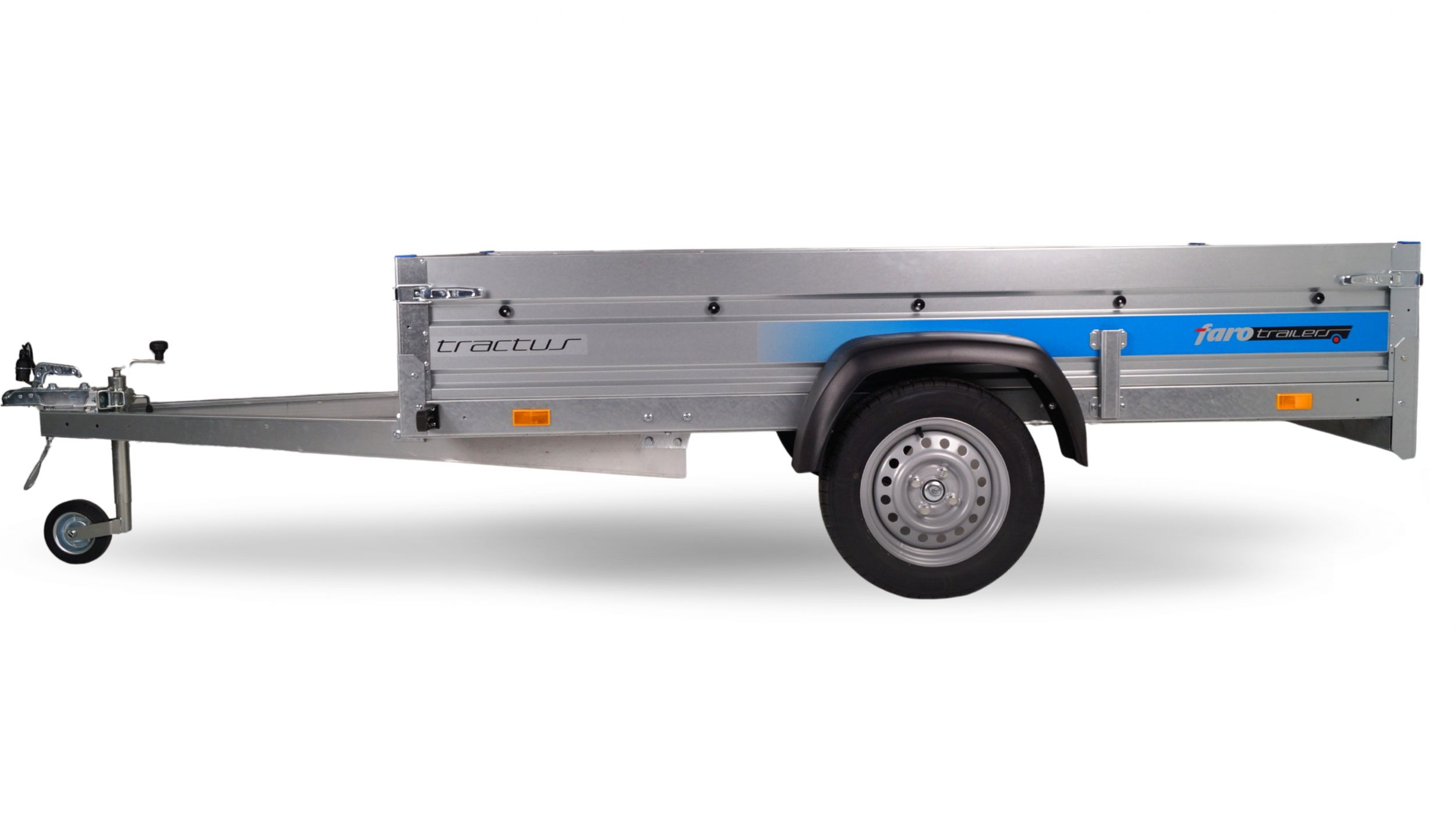

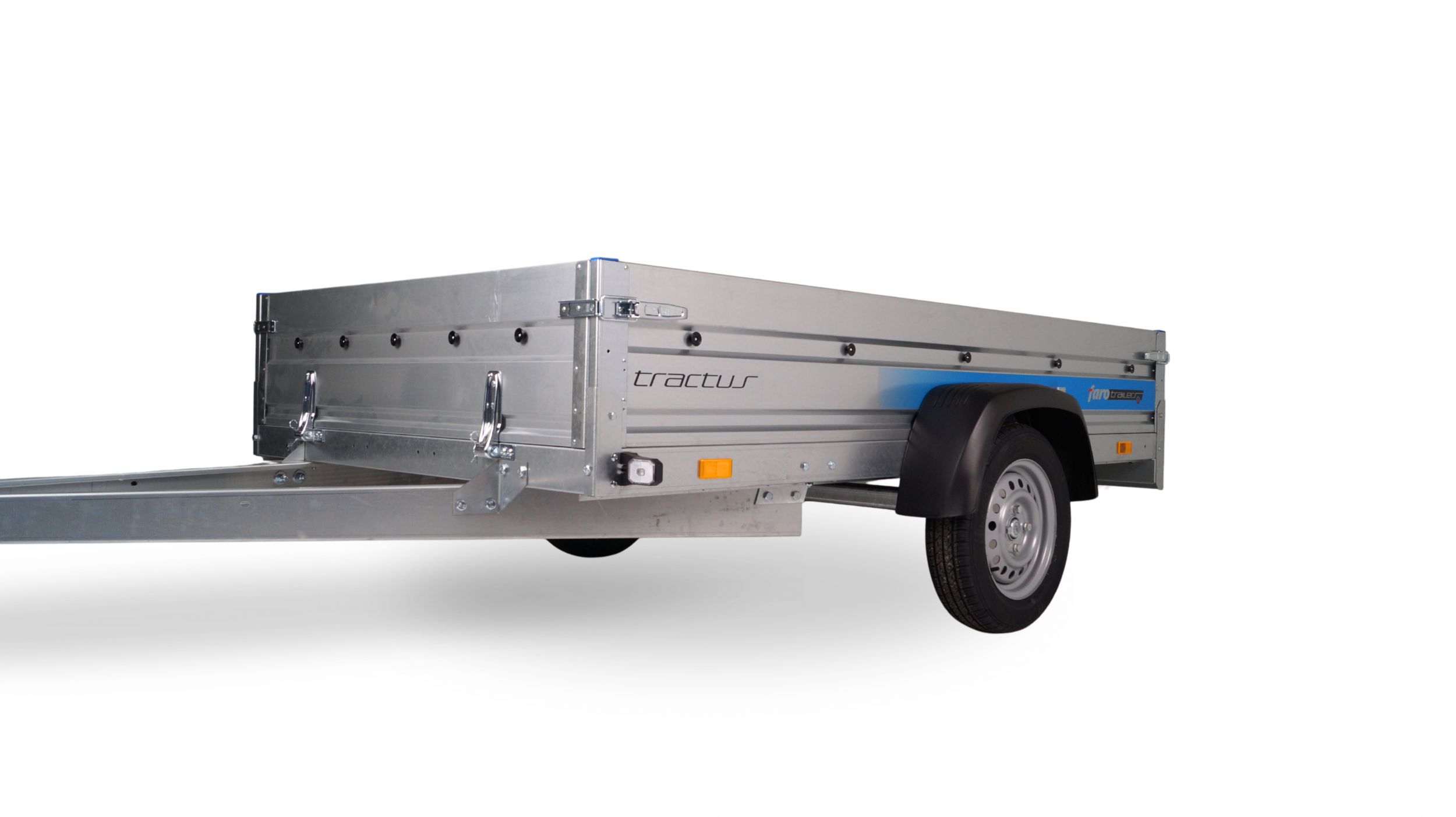

TRACTUS is a modern unbraked car trailer. Wheels are placed outside of the trailer. It’s made of the best available materials. Permissible gross weight is even 750 kg. The trailer was made of a sheet DX51D+Z275 who’s thickness of zinc coat equals 275g/m2 (A class). Bolted construction of a trailer simplifies elements replacement- used during the regular exploitation. Strength of construction is provided by frame made from cold formed stringers . Stringers are U shaped . Special frame , stringers and appreciate number of crossbeams gives a right stiffness and stability of the whole construction. Sides of Tractus are easy removable. It can be easily used as a platform. This trailer was made using components of known producers STEELPRESS, KNOTT and AL-KO.

Standard equipment:

  • trailer’s frame was made from galvanized sheet - thickness 2,5 mm (A class)

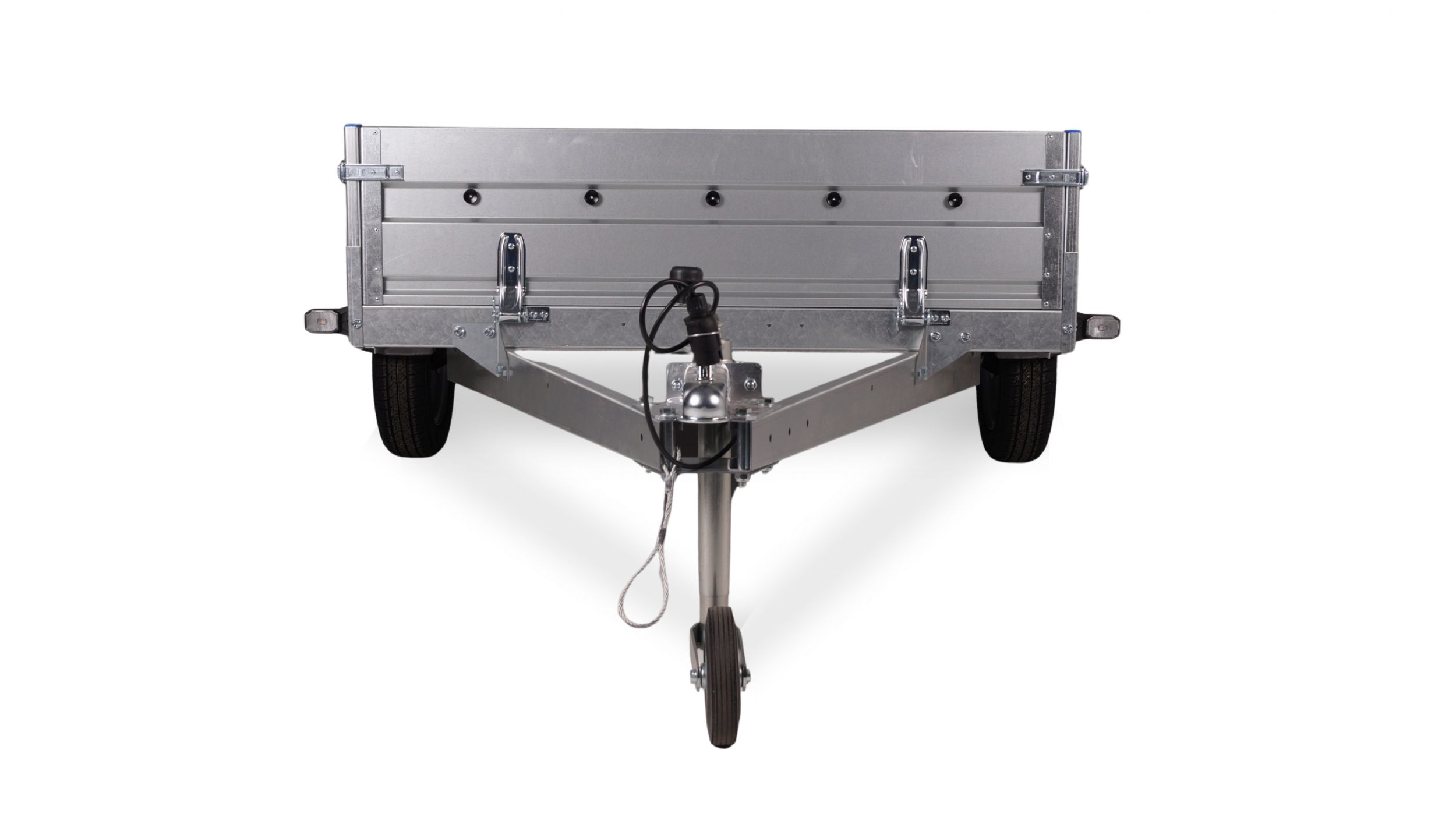

  • towing hitch V-type was made from a bent galvanized sheet 2,5mm (A class), bolted
  • trailer’s sides were made of galvanized sheet - thickness 1,5 mm (A class)

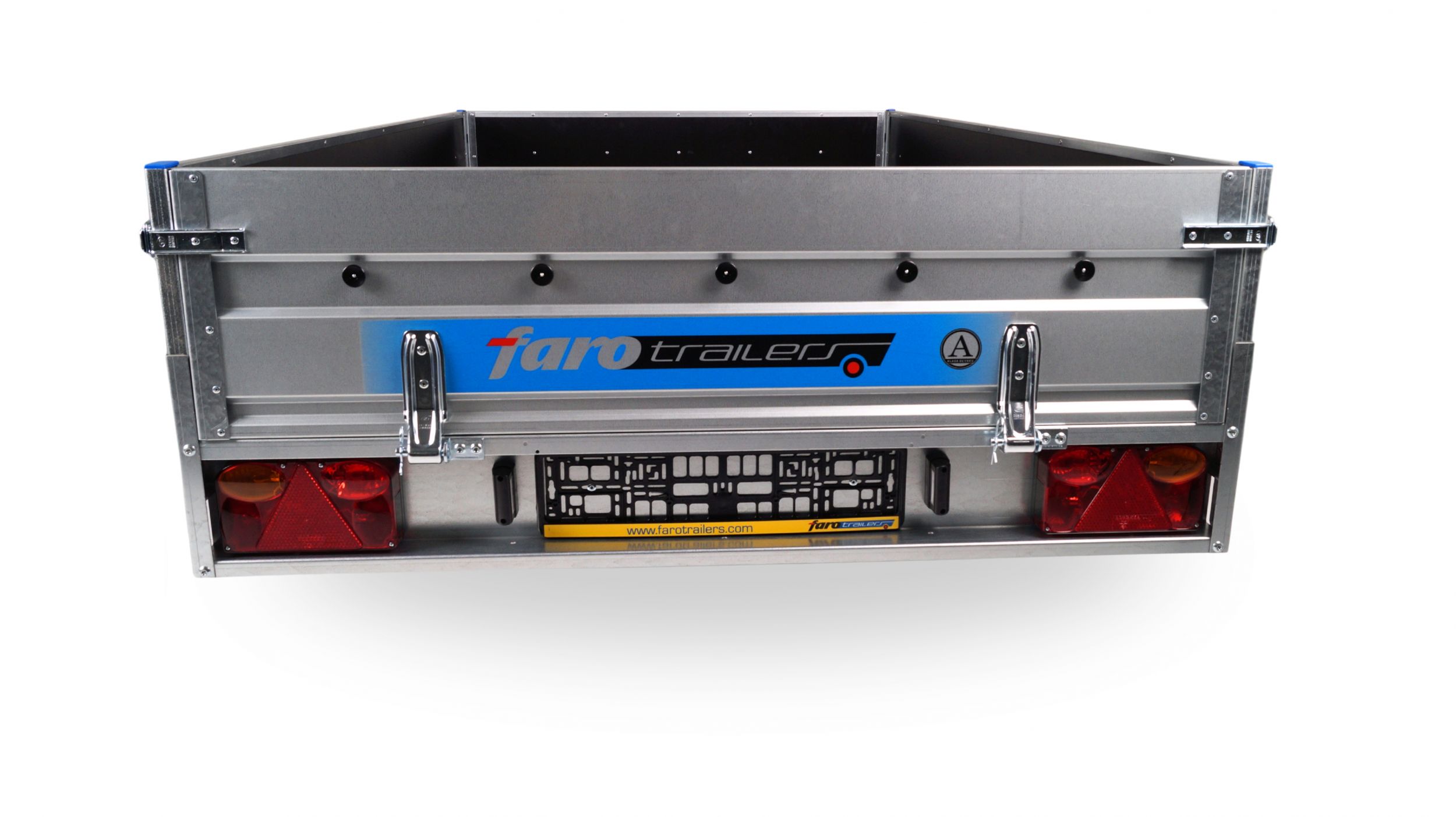

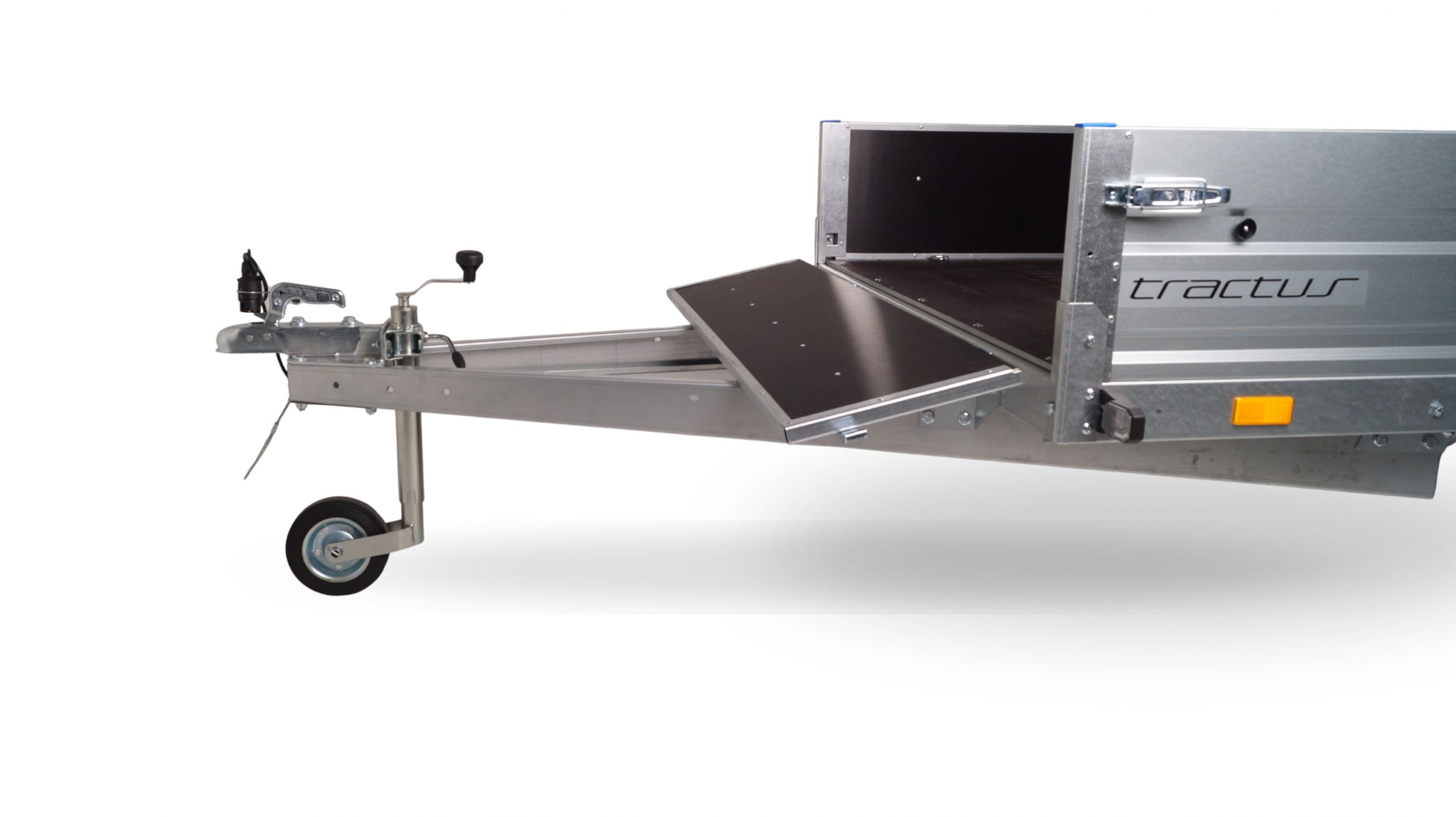

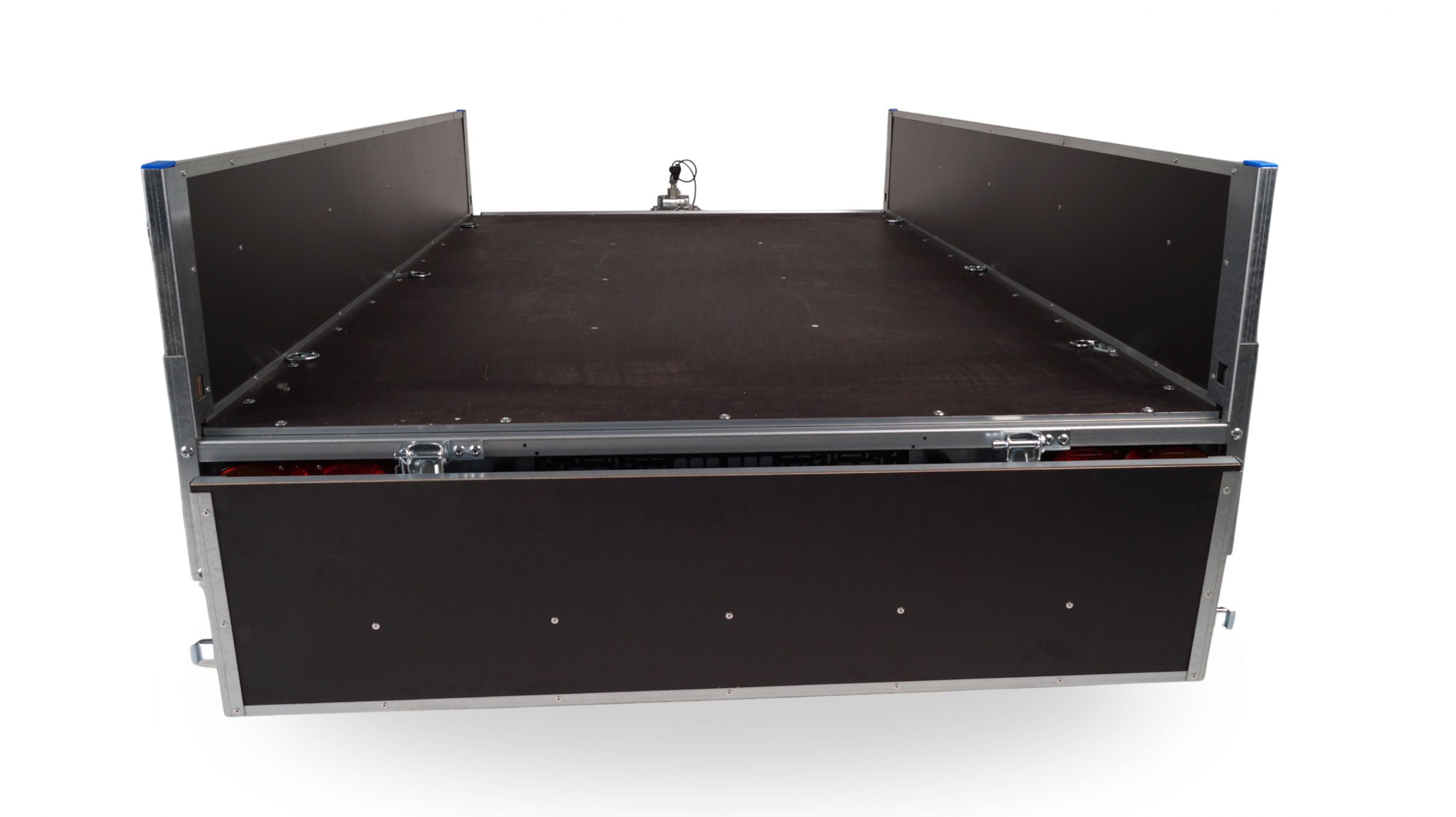

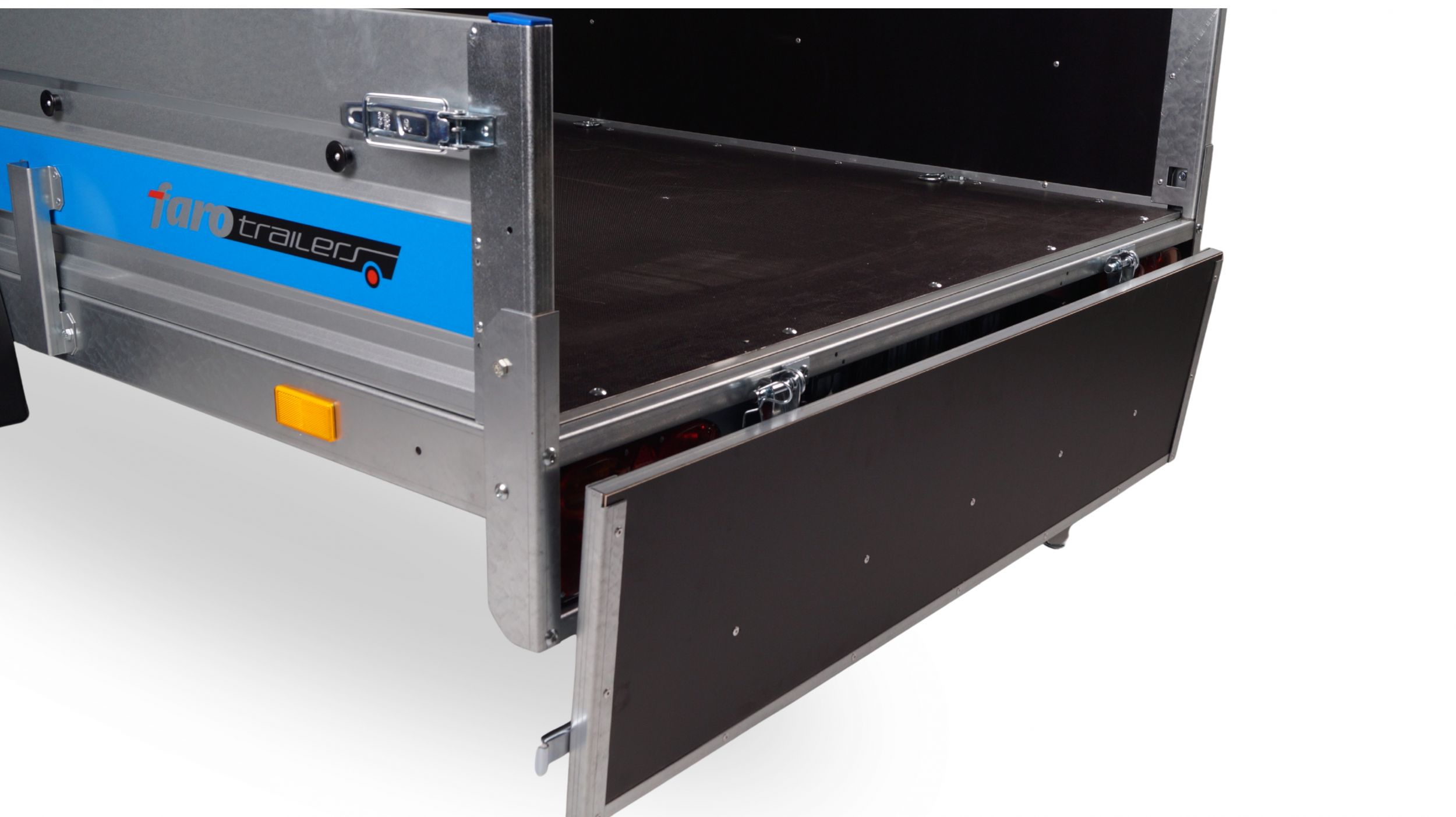

  • front and back sides are fully openable
  • left and right sides are fully removable
  • towing hitch ball STEELPRESS 750kg or 1300kg made by STEELPRESS

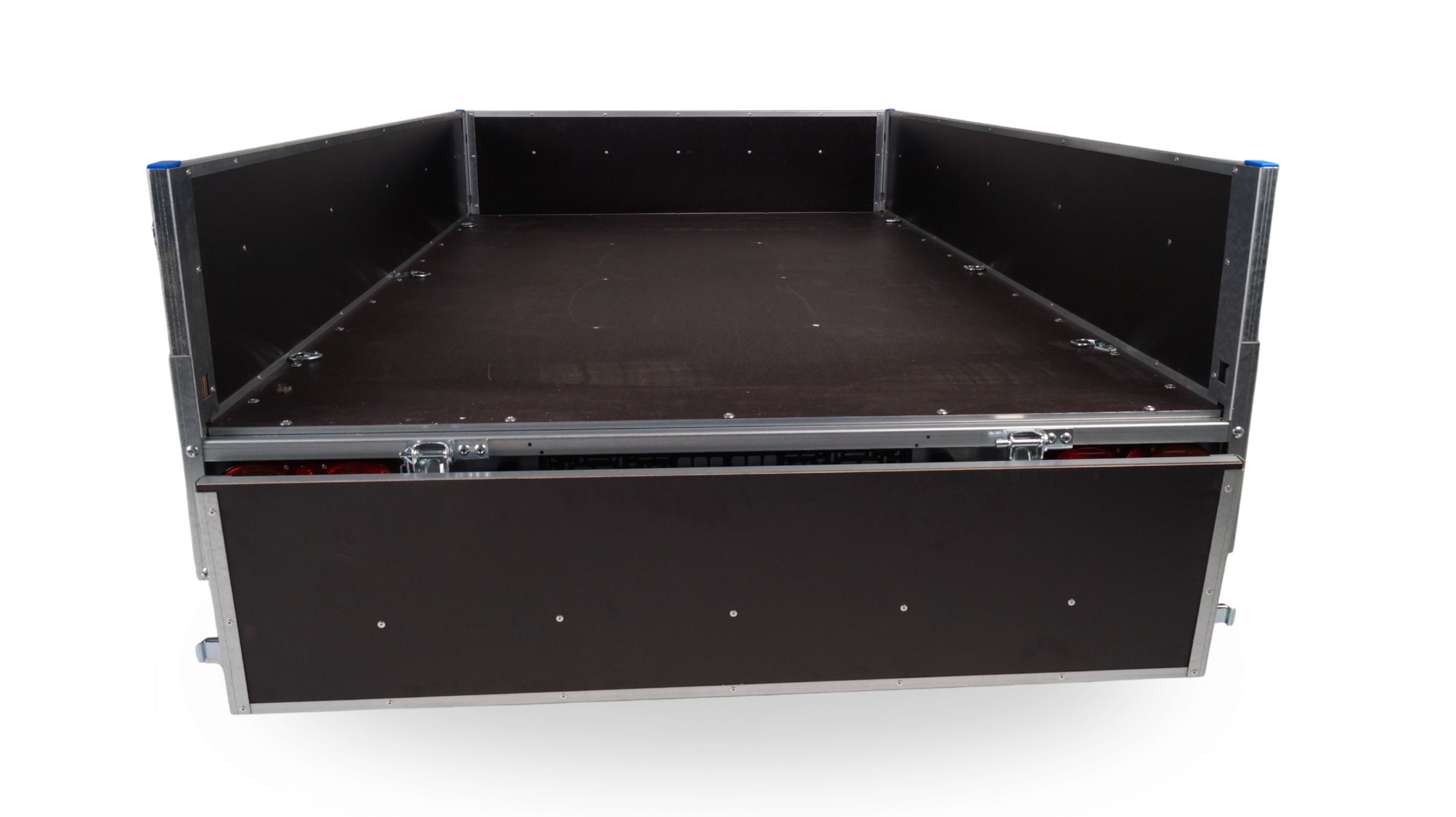

  • floor is made of waterproof non-slippery plywood - thickness 9 mm
  • unbraked torsional axle STEELPRESS, KNOTT or AL-KO
  • mudguards with mudflap are made of polyethylene material
  • jockey wheel
  • wheels 155 R13
  • load securing buckle
  • side rolls helping install the tilt
  • electrical installation 12V (in accordance with traffic regulations)
  • 7 pin plug

Additional equipment:

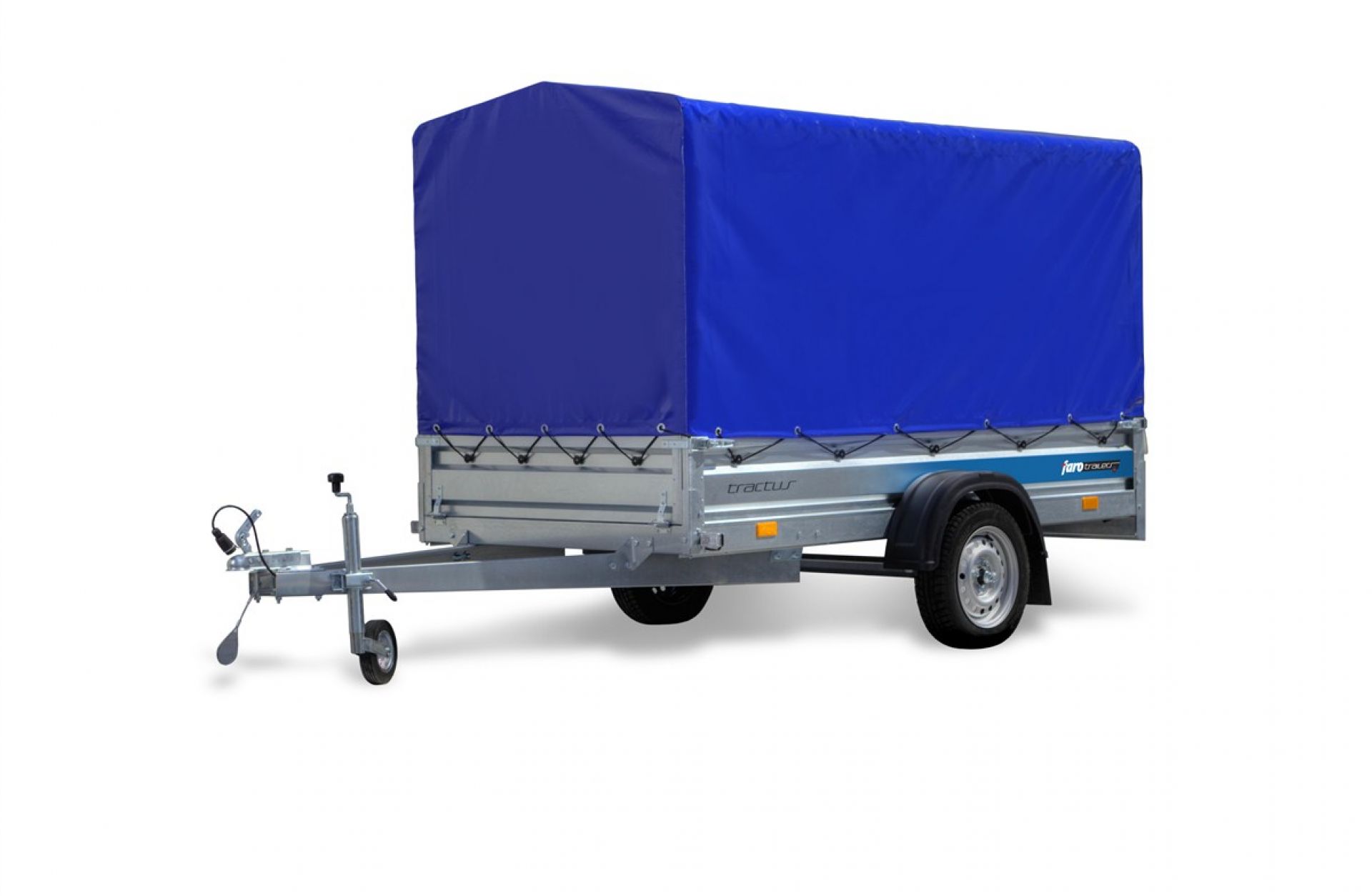

  • the frame with a cover H-1100mm, H-800 mm

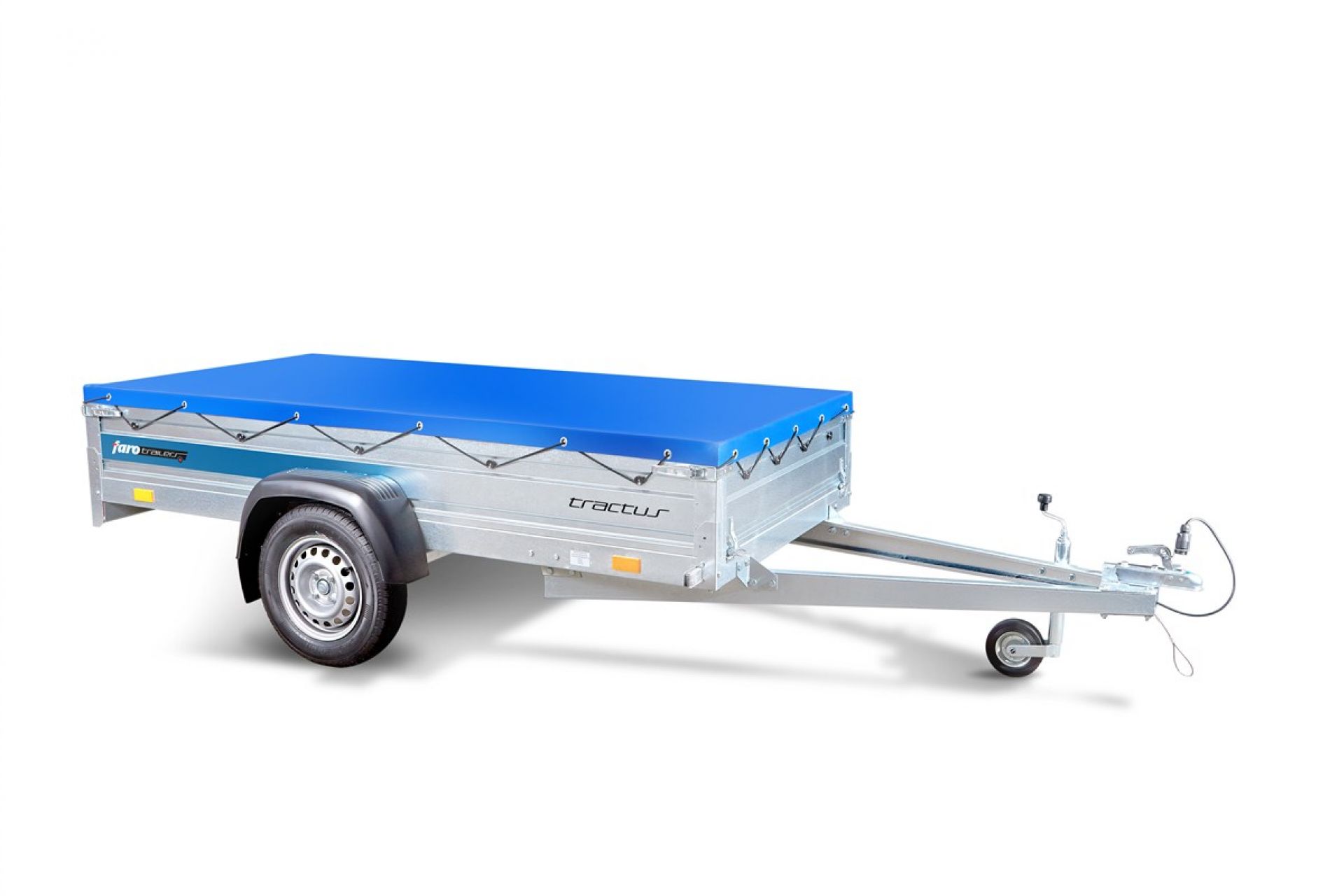

  • flat cover
  • spare wheel with bracket
  • unbraked axle STEELPRESS 1000 kg with compact bearings (especially recommended for trailer rentals)

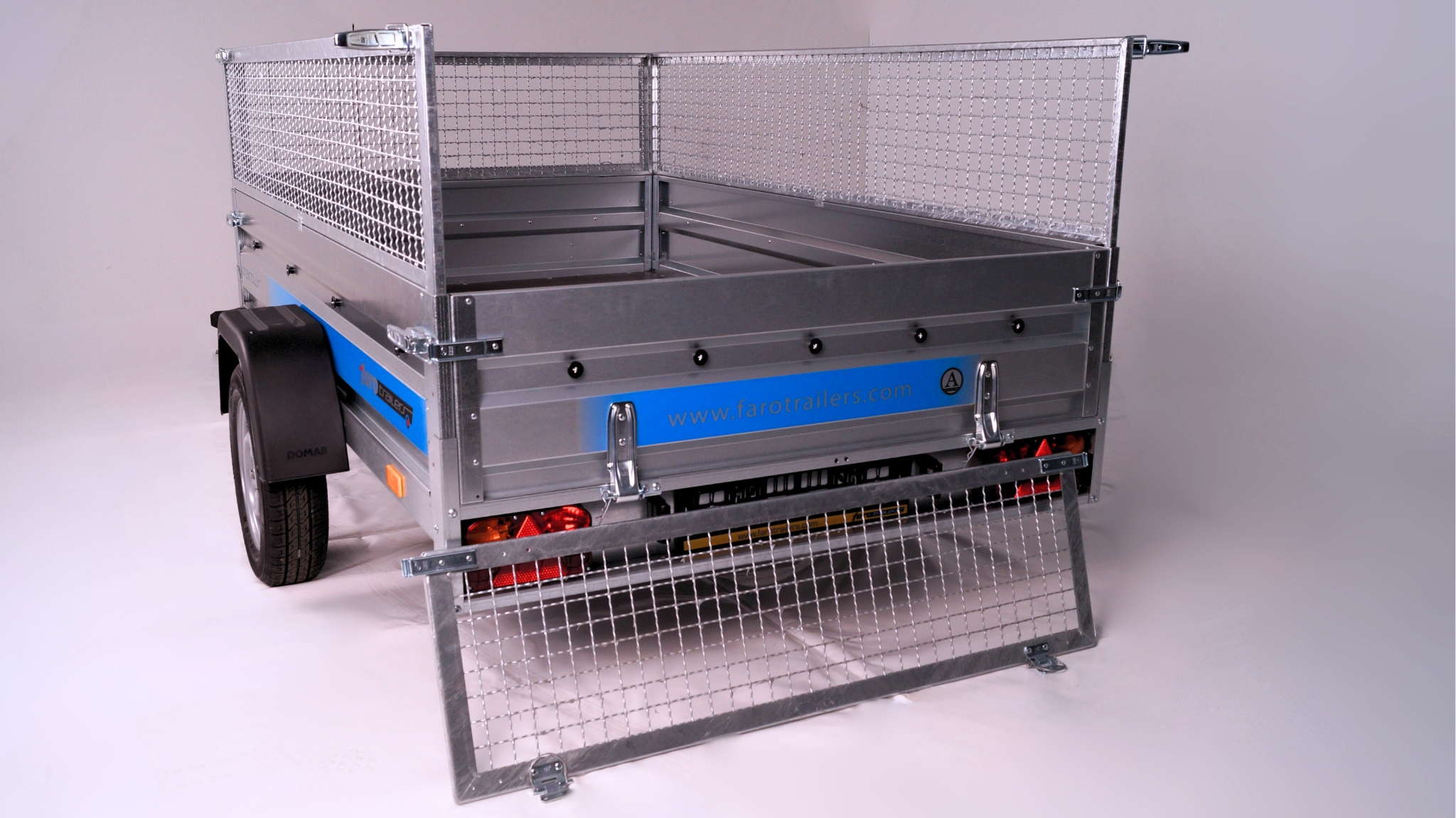

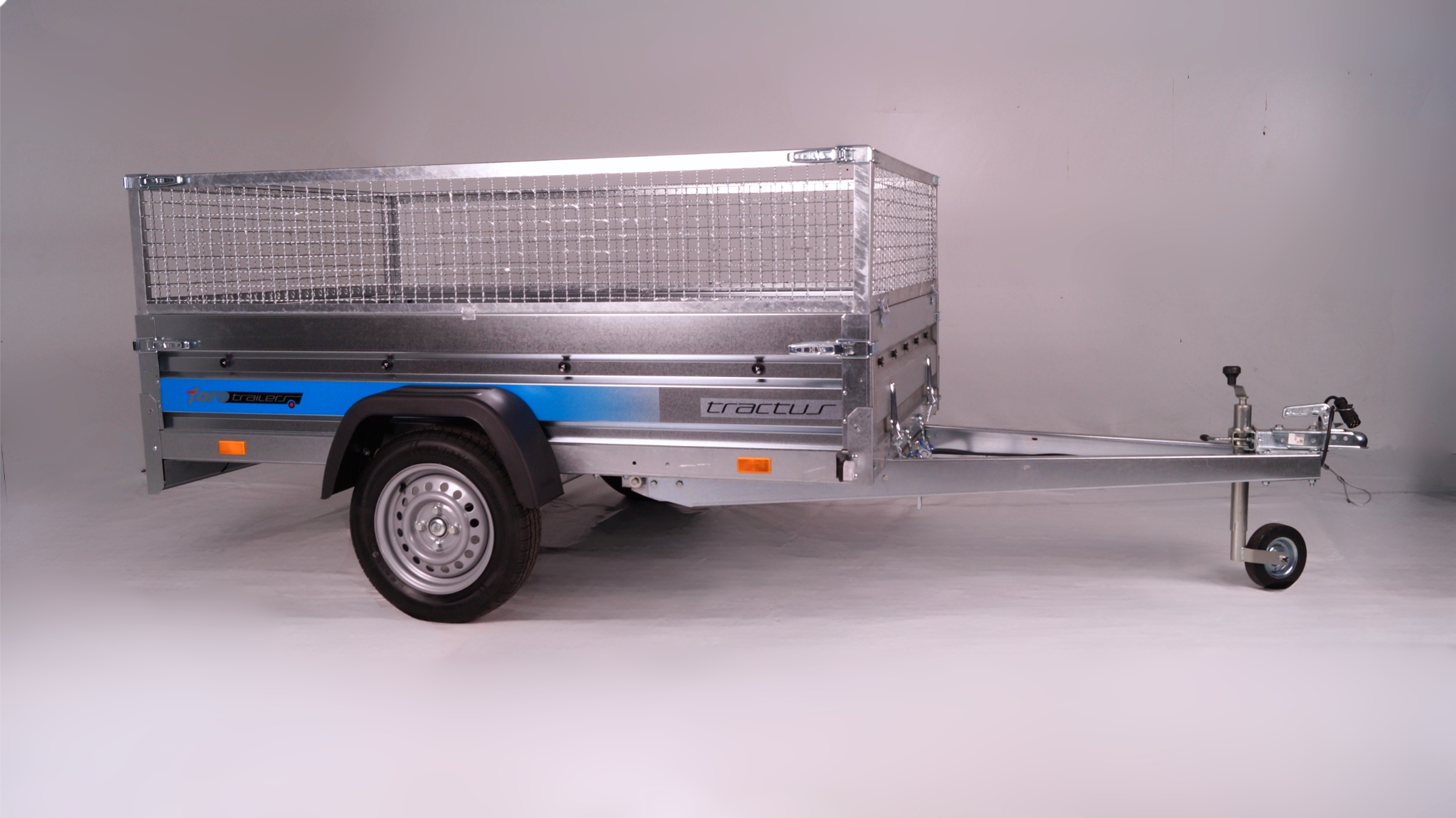

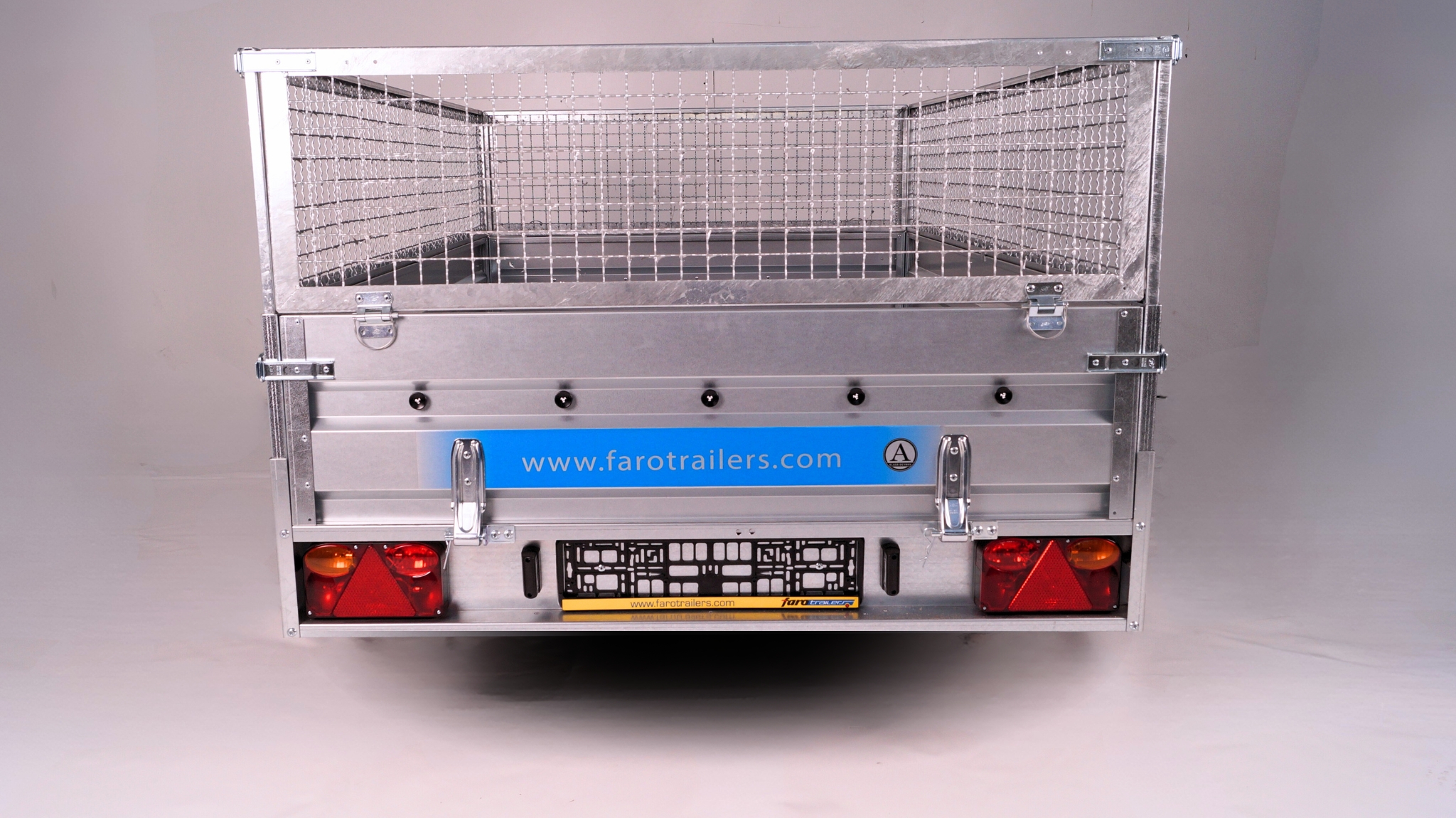

  • mesh sides extension
  • sides extension

Additional informations:

  • EU homologation (possibility of registration in any EU country)
  • 2 years warranty



This offer is solemnly for information. Considering constant development of our company the producer keeps the right to changes and technical modifications.

Product specification of Tractus

ParameterValue
Side height (cm)35/45
Permissible gross weight min. - max. (kg)400 - 750
Suspension1 unbraked axle 750 / 1000 kg
Wheels155/70R13 or 165/70R13
Dimensions of cargo space (cm)205 x 125 / 220 x 125 / 236 x 125 / 263 x 125 / 263 x 150
Side height (cm)35/45
External dimensions of the trailer (cm)342 x 173 / 357 x 173 / 373 x 173 / 400 x 173 / 400 x 198
Permissible gross weight min. - max. (kg)400 - 750
Curb weight (kg)175 / 180 / 185 / 195 / 210
Capacity min. - max. (kg)190 - 540 / 205 - 555 / 215 - 565 / 220 - 570 / 225 - 575
Suspension1 unbraked axle 750 / 1000 kg
Wheels155/70R13 or 165/70R13

Ask about product

:
:
:
:

Recommend product

:
:
:

Error?

:
:
:

Product specification of Tractus

Dimensions of cargo space (cm) Side height (cm) External dimensions of the trailer (cm) Permissible gross weight min. - max. (kg) Curb weight (kg) Capacity min. - max. (kg) Suspension Wheels
205 x 125 35/45 342 x 173 400 - 750 175 225 - 575 1 unbraked axle 750 / 1000 kg 155/70R13 or 165/70R13
220 x 125 357 x 173 180 220 - 570
236 x 125 373 x 173 185 215 - 565
263 x 125 400 x 173 195 205 - 555
263 x 150 400 x 198 210 190 - 540
