TRACTUS MULTI

Product description TRACTUS MULTI

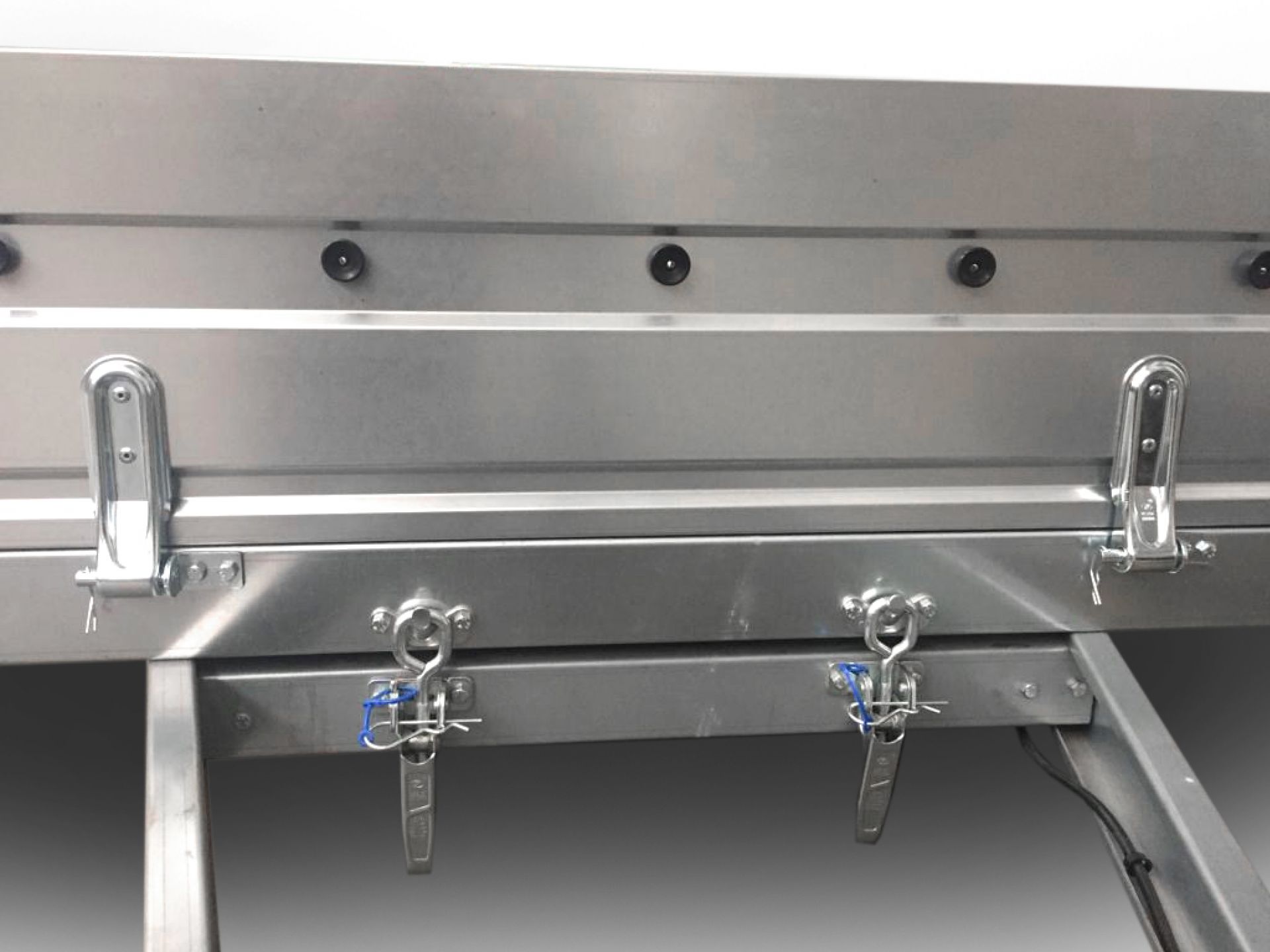

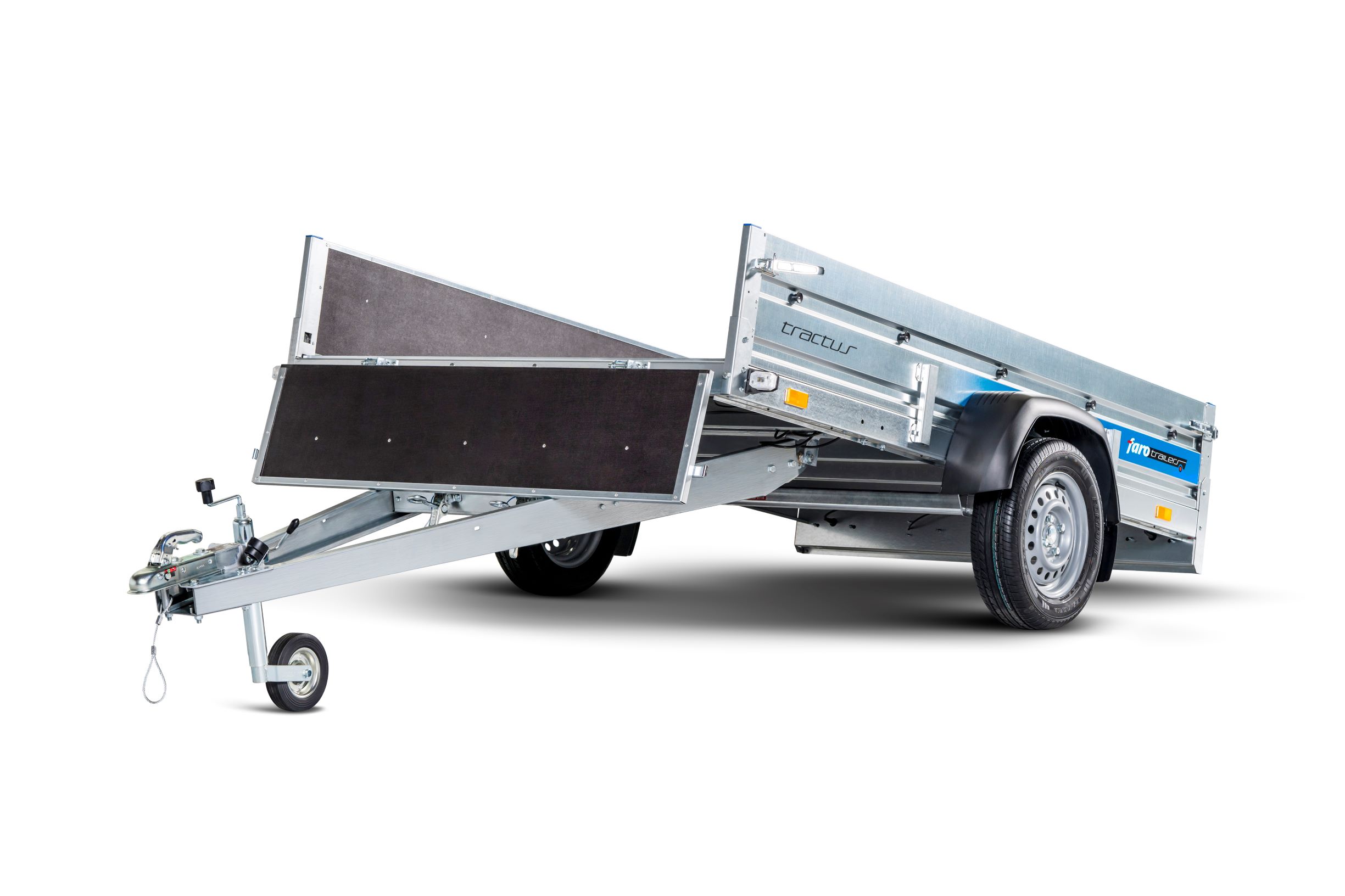

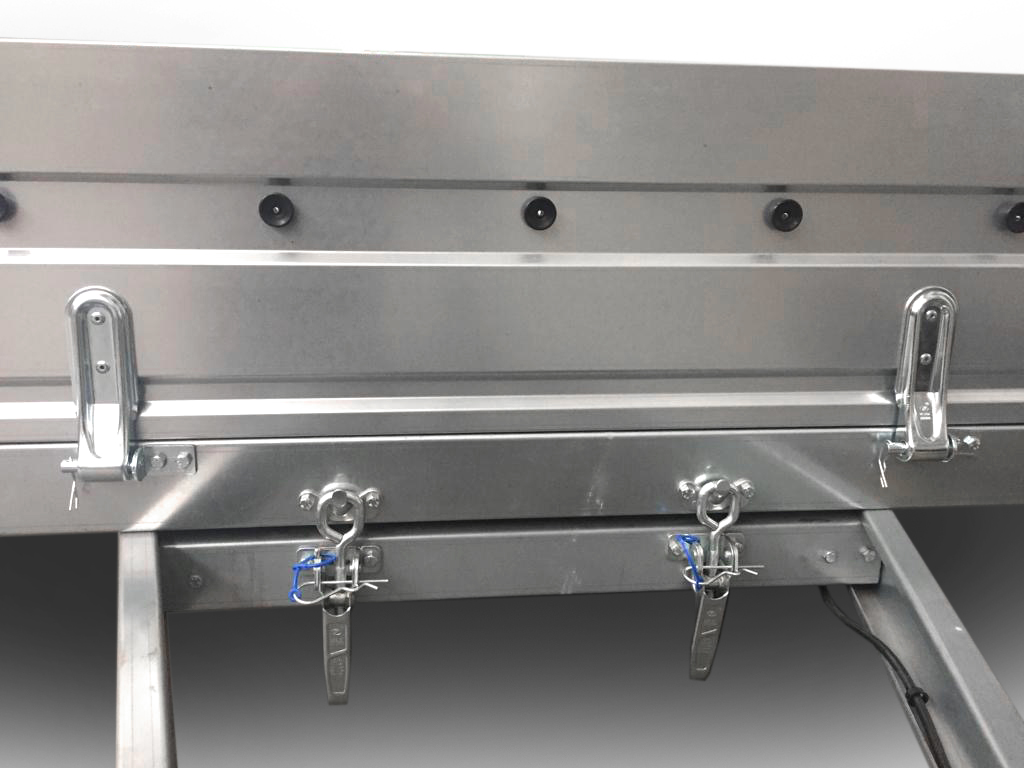

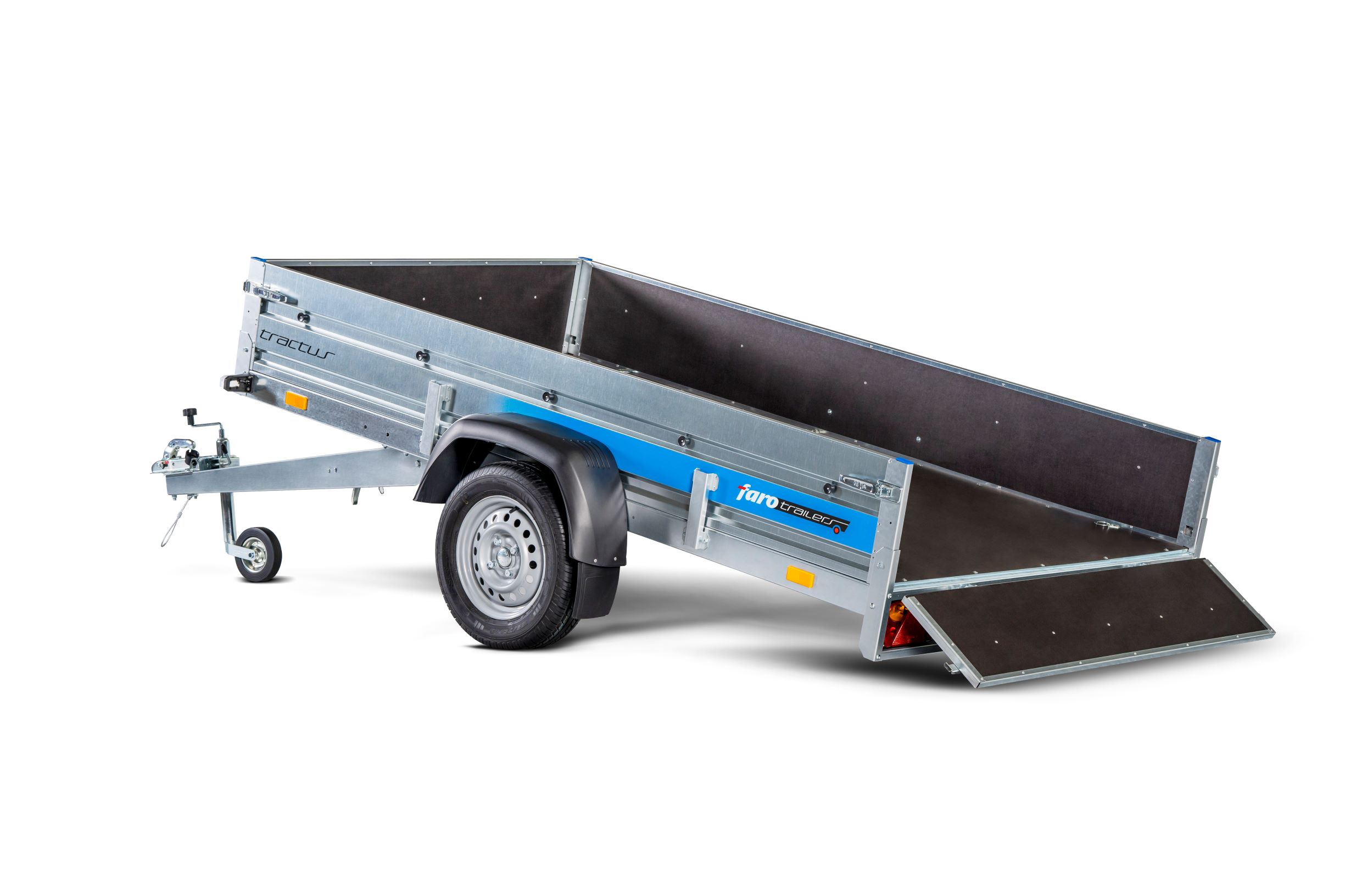

Multifunctional trailer that improves unloading of loose goods, and using a special rear side as a driveway, help to load equipment and vehicles such as quad, a self-propelled mower or a motorcycle. Tipping load box is attached to the frame with two solid Steelpres hooks.



Available in size versions: 2050x1250, 2220x1250, 2360x1250, 2630x1250, 2500x1400, 2630x1500, with plywood sides, net extensions, frame and cover

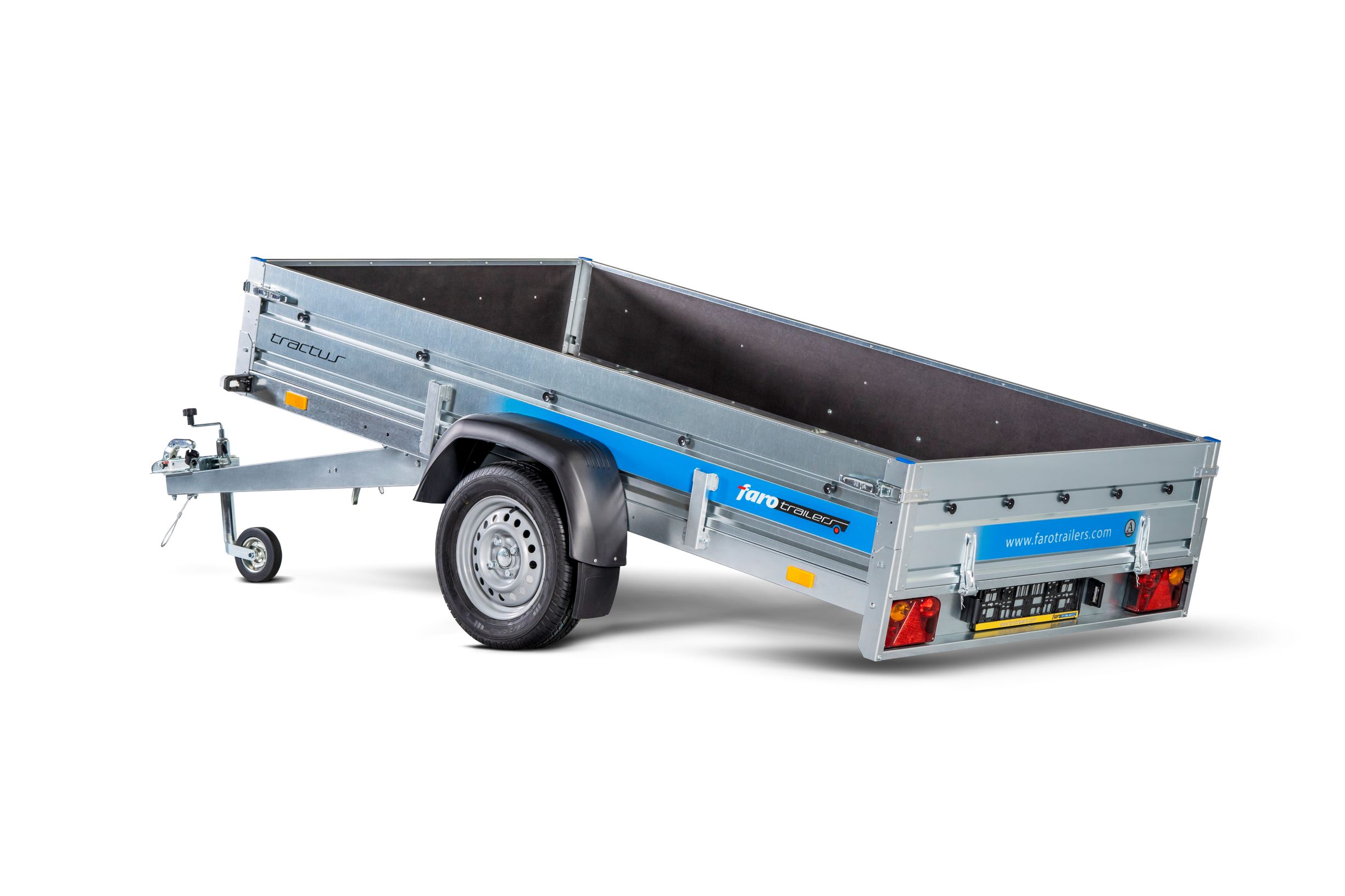

TRACTUS is a modern unbraked car trailer. Wheels are placed outside of the trailer. It’s made of the best available materials. Permissible gross weight is even 750 kg. The trailer was made of a sheet DX51D+Z275 who’s thickness of zinc coat equals 275g/m2 (A class). Bolted construction of a trailer simplifies elements replacement- used during the regular exploitation. Strength of construction is provided by frame made from cold formed stringers . Stringers are U shaped . Special frame , stringers and appreciate number of crossbeams gives a right stiffness and stability of the whole construction. Sides of Tractus are easy removable. It can be easily used as a platform. This trailer was made using components of known producers STEELPRESS, KNOTT and AL-KO.

Standard equipment:

• trailer’s frame was made from galvanized sheet - thickness 2,5 mm (A class)

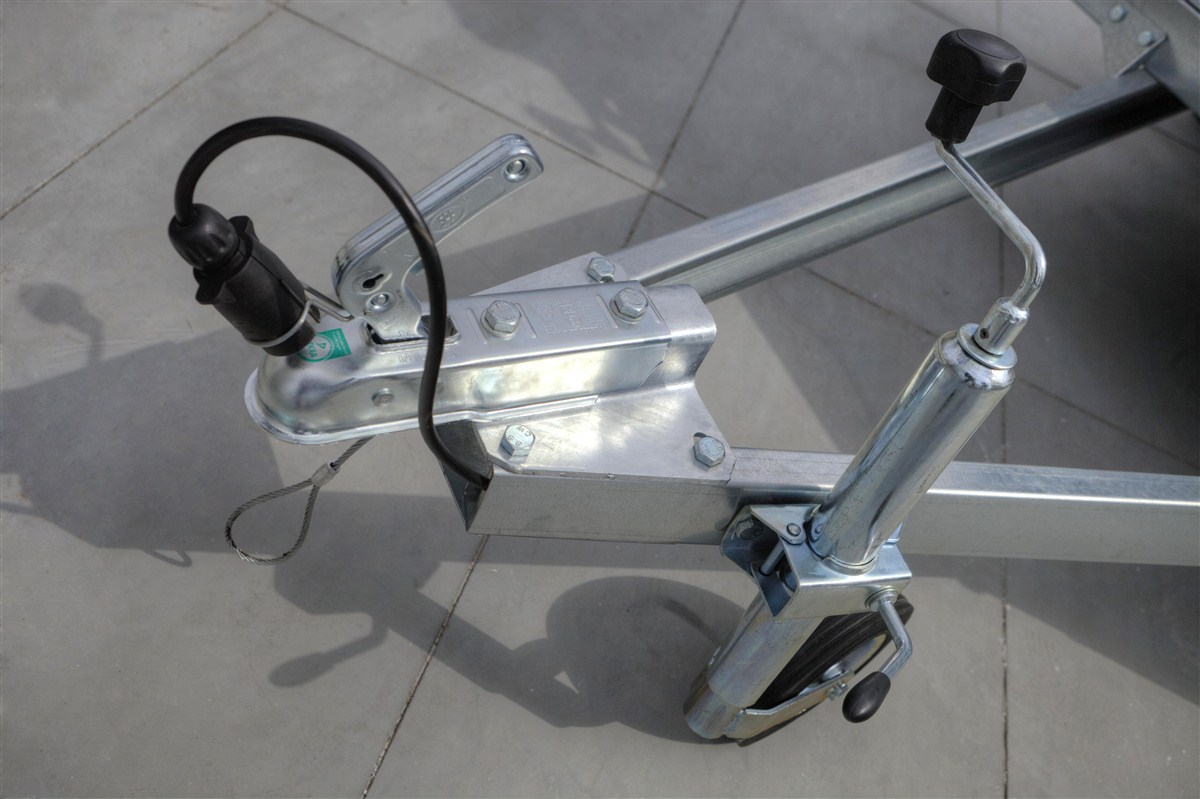

• towing hitch V-type was made from a bent galvanized sheet 2,5mm (A class), bolted
• trailer’s sides were made of galvanized sheet - thickness 1,5 mm (A class)

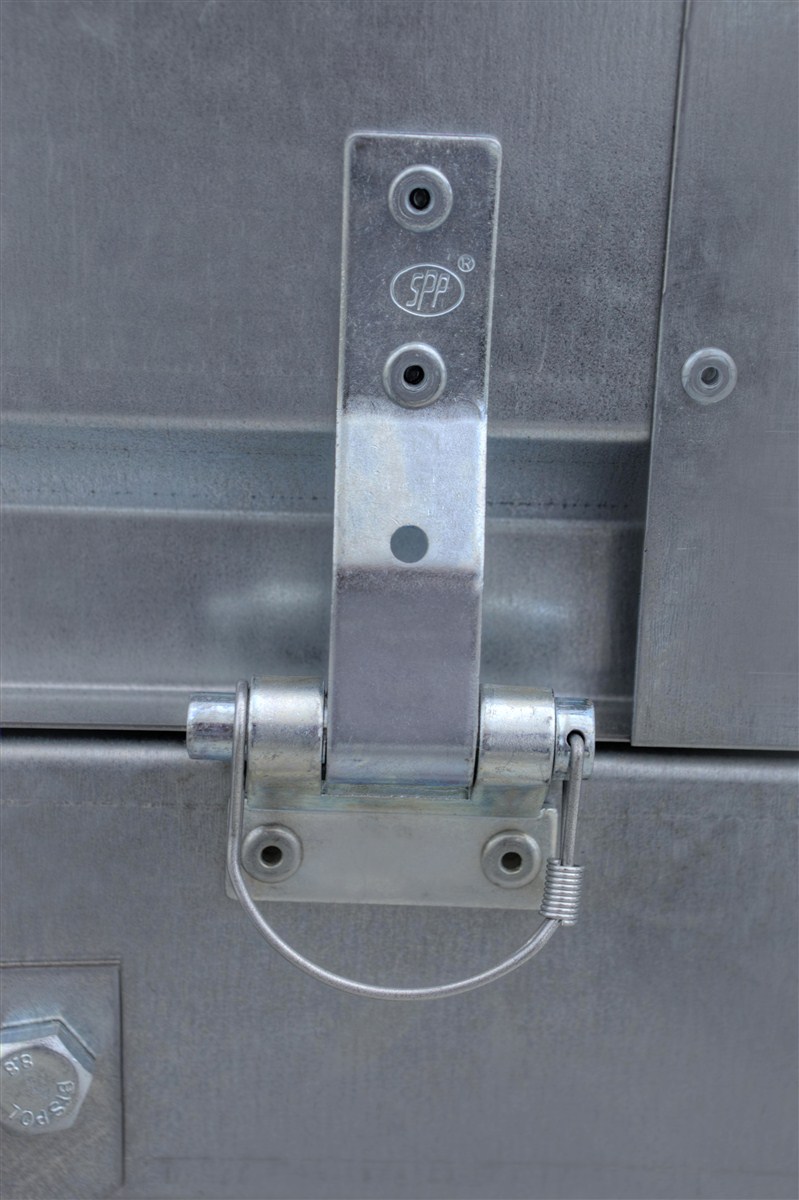

• front and back sides are fully openable

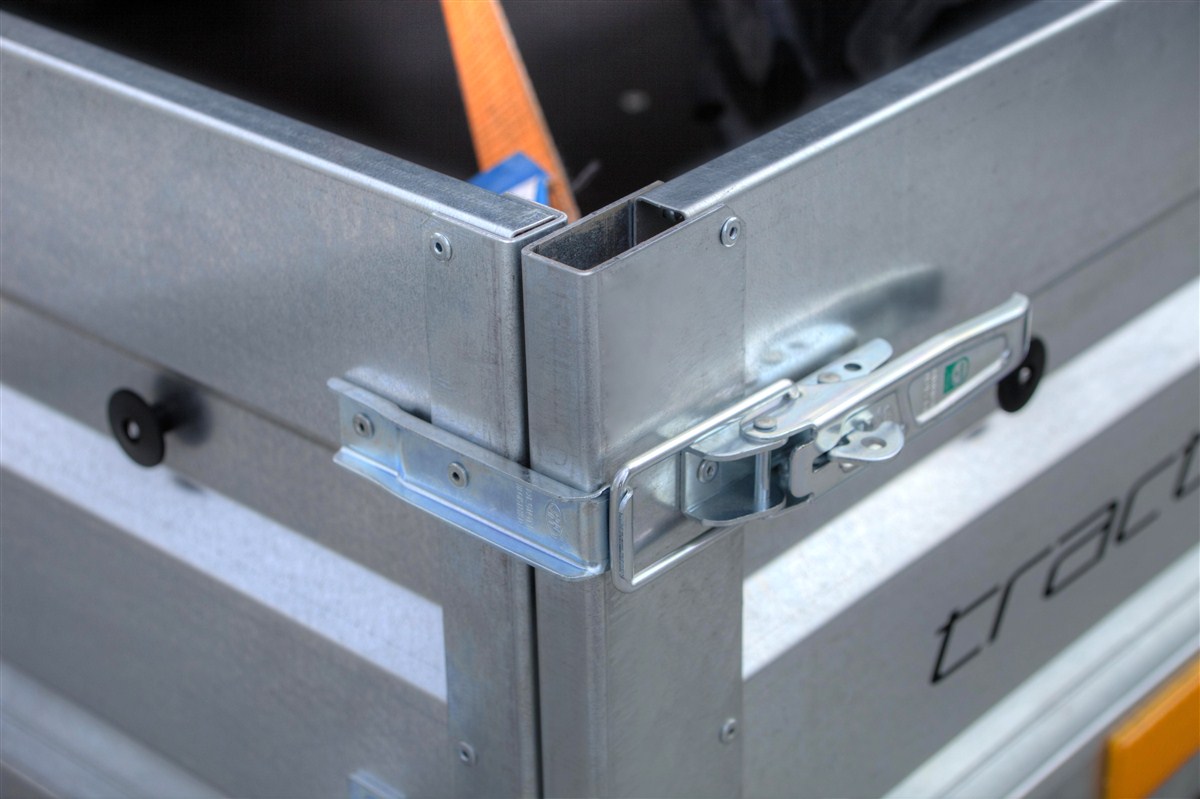

• left and right sides are fully removable
• towing hitch ball STEELPRESS 750kg or 1300kg made by STEELPRESS
• floor is made of waterproof non-slippery plywood - thickness 9 mm
• unbraked torsional axle STEELPRESS, KNOTT or AL-KO
• mudguards with mudflap are made of polyethylene material
• jockey wheel
• wheels 155 R13 or 155/70R13

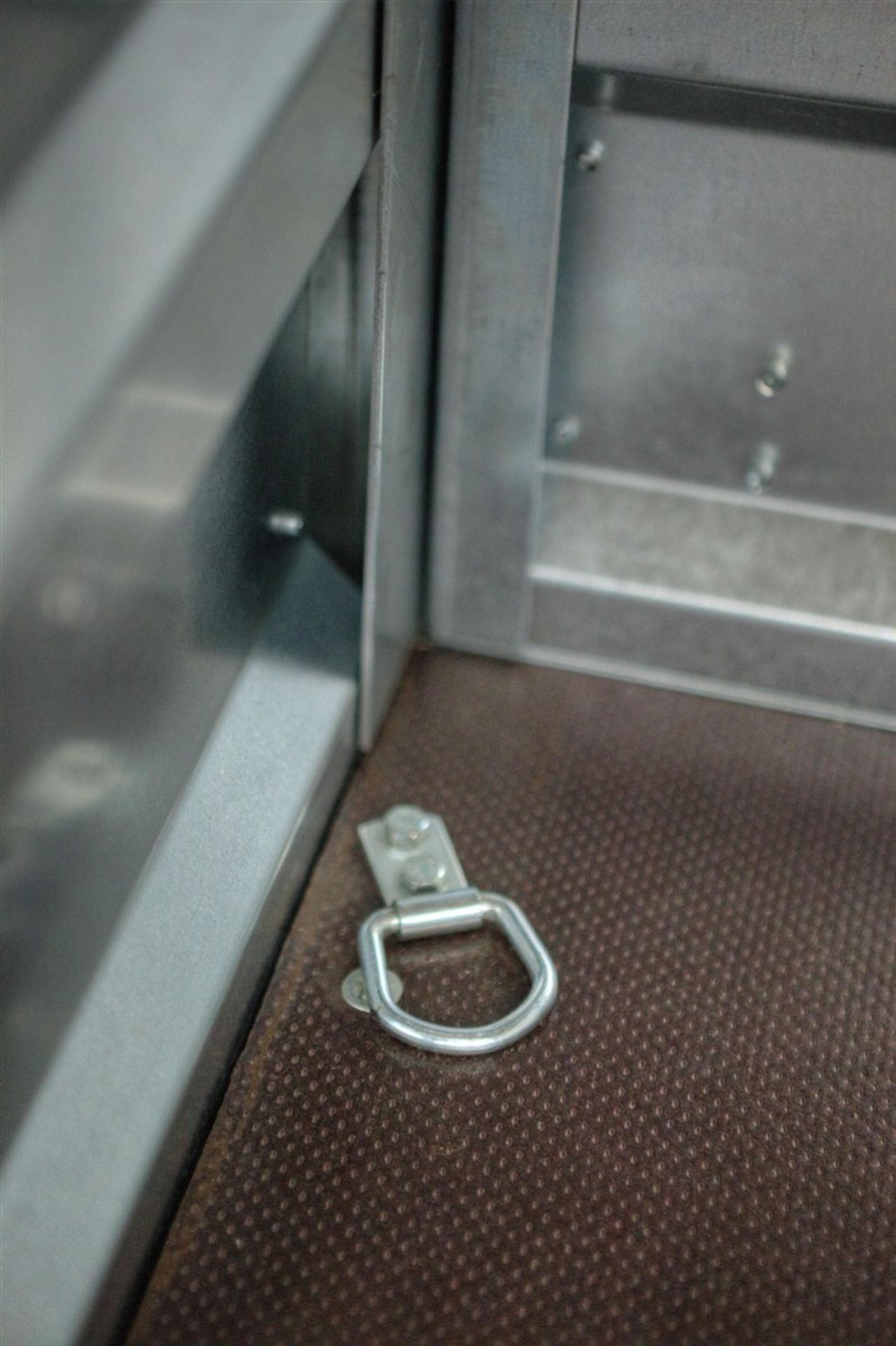

• load securing buckle
• side rolls helping install the tilt
• electrical installation 12V (in accordance with traffic regulations)
• 7 pins plug or 13 pins

Additional equipment:

• the frame with a cover H-1100mm, H-800 mm
• flat cover
• spare wheel with bracket
• unbraked axle STEELPRESS 1000 kg with compact bearings (especially recommended for trailer rentals)
• mesh sides extension
• sides extension

Additional informations:

• EU homologation (possibility of registration in any EU country)
• 2 years warranty





This offer is solemnly for information. Considering constant development of our company the producer keeps the right to changes and technical modifications.
