Magicus

Product description Magicus

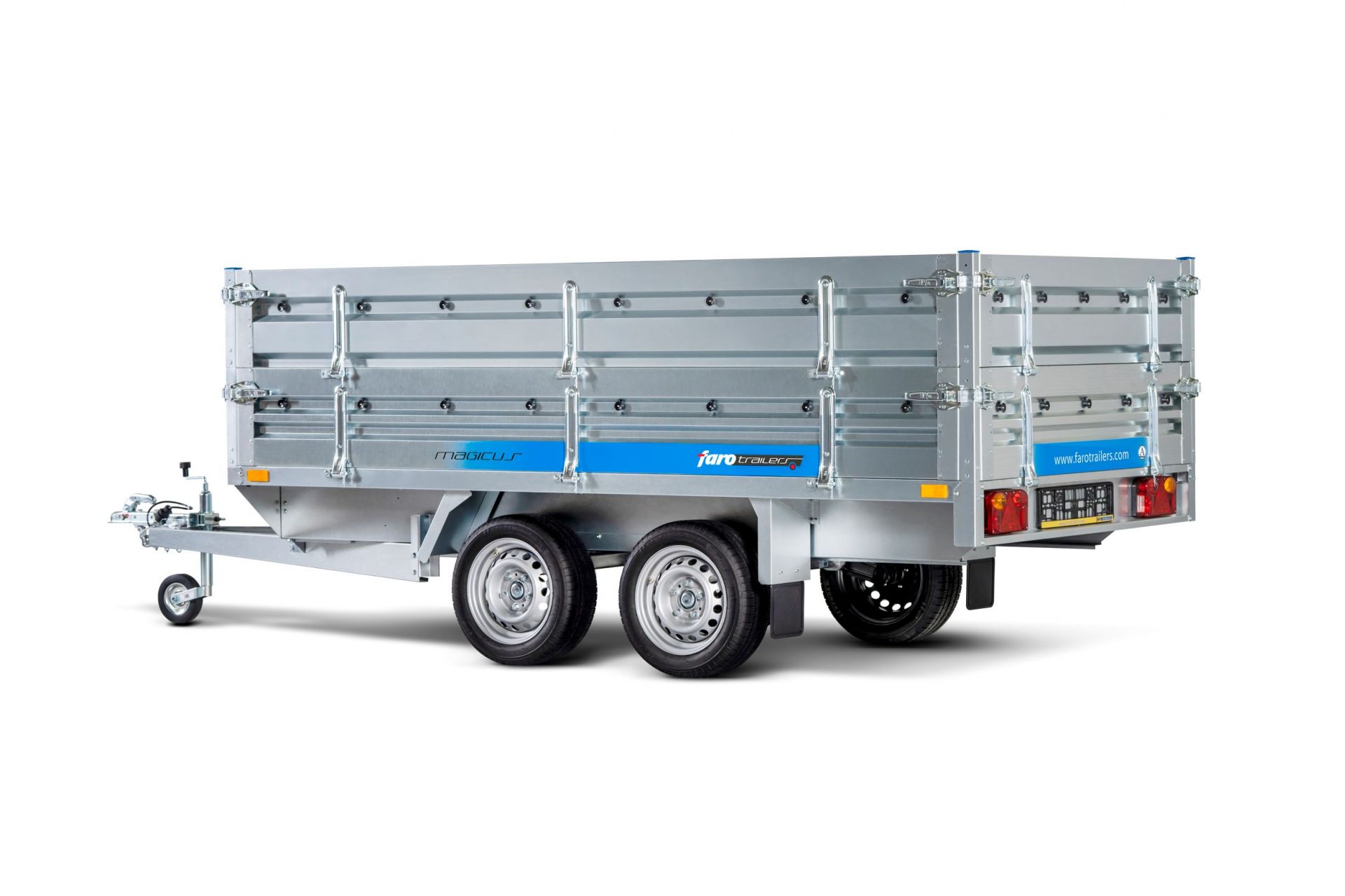

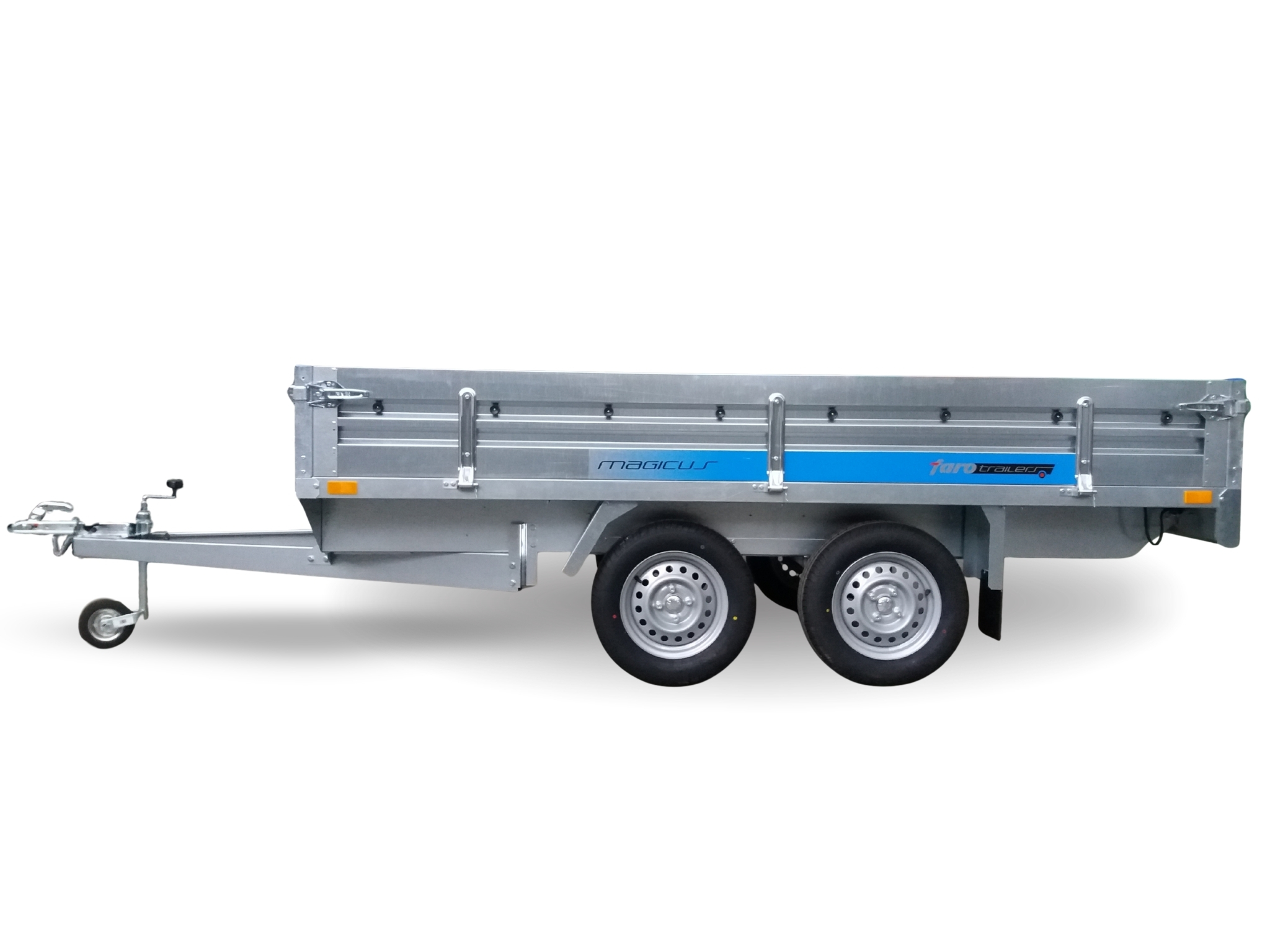

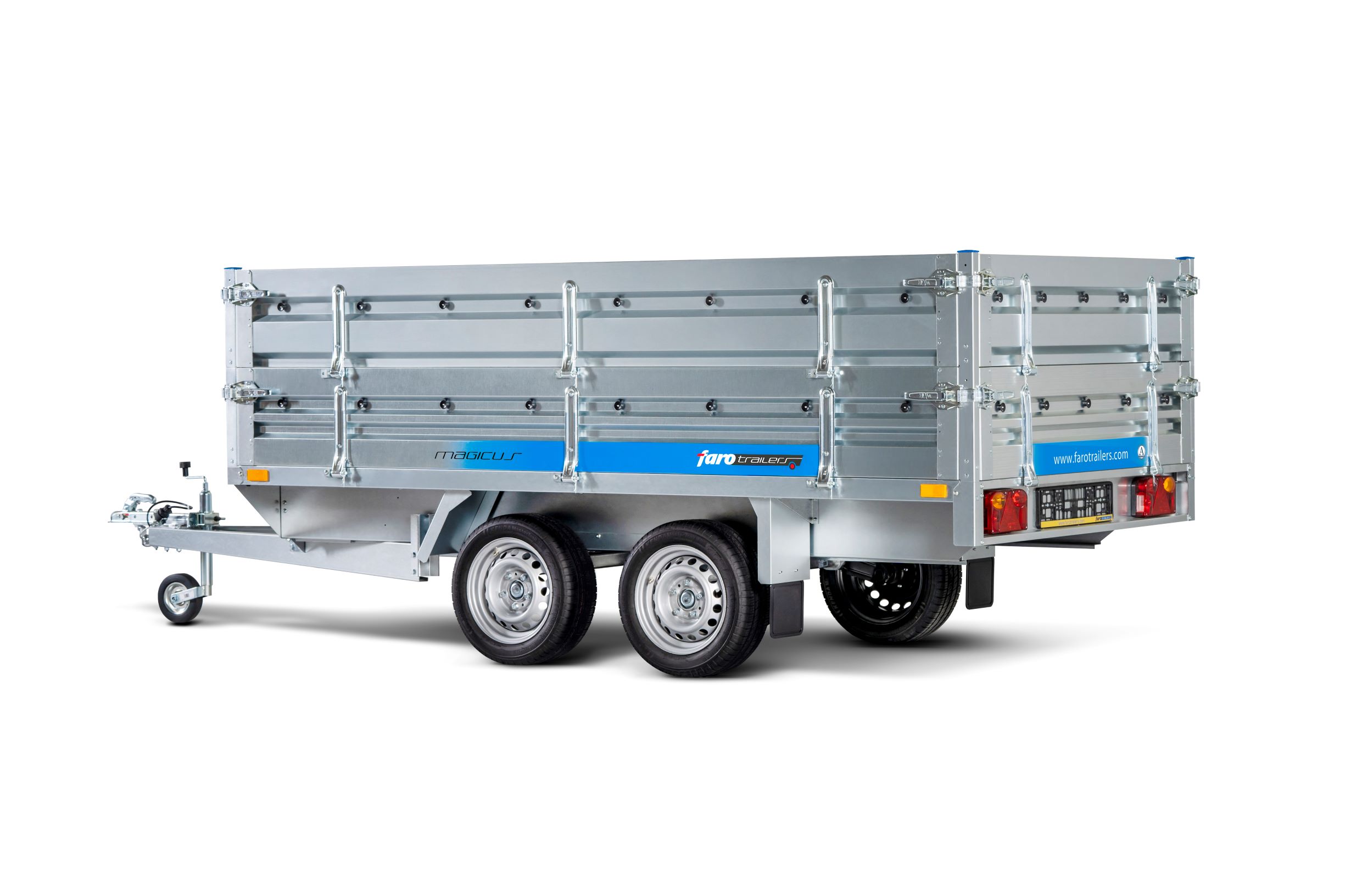

MAGICUS is a modern line of trailers with wheels under a loading plaftorm, made with the best available materials on the Polish market. The chassis is two axles unbraked 750 kg or 1000kg. Permissible total weight is even 750kg. The trailer is made of sheets SGD220 + Z275, wherein the thickness of the zinc coating is 275g / m2 (Class A). Magicus is screwable and it’s parts are easy to replace in case of damage or exploitation. Structural strength provides frame made of cold-formed stringers in the shape of U, and the right amount of cross beams giving adequate rigidity and durability. The sides of the trailer can easily be removed and used as a platform. The trailer was made on components known firm STEELPRESS, KNOTT, AND AL-KO

Standard equipment:

  • trailer’s frame was made of galvanized sheet- thickness 2,5 mm (A class)
  • V-drawbar was made of a bent galvanized sheet 2,5mm (A class), bolted
  • trailer’s sides were made of galvanized sheet - thickness 1,25 mm (A class)
  • front and back sides are fully openable

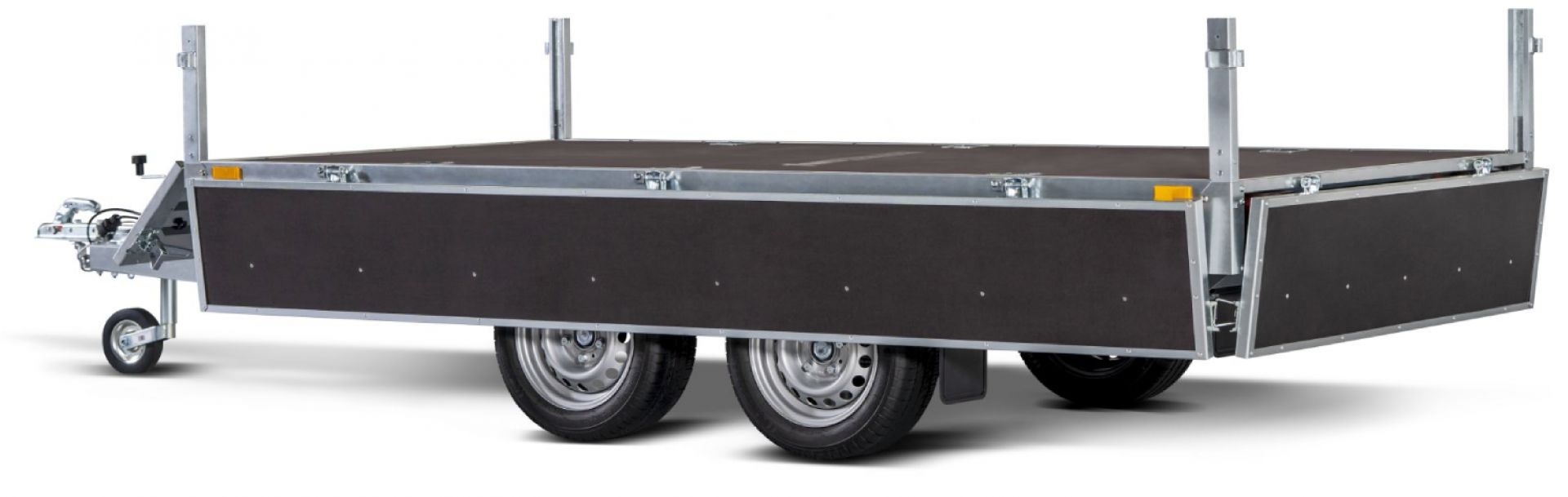

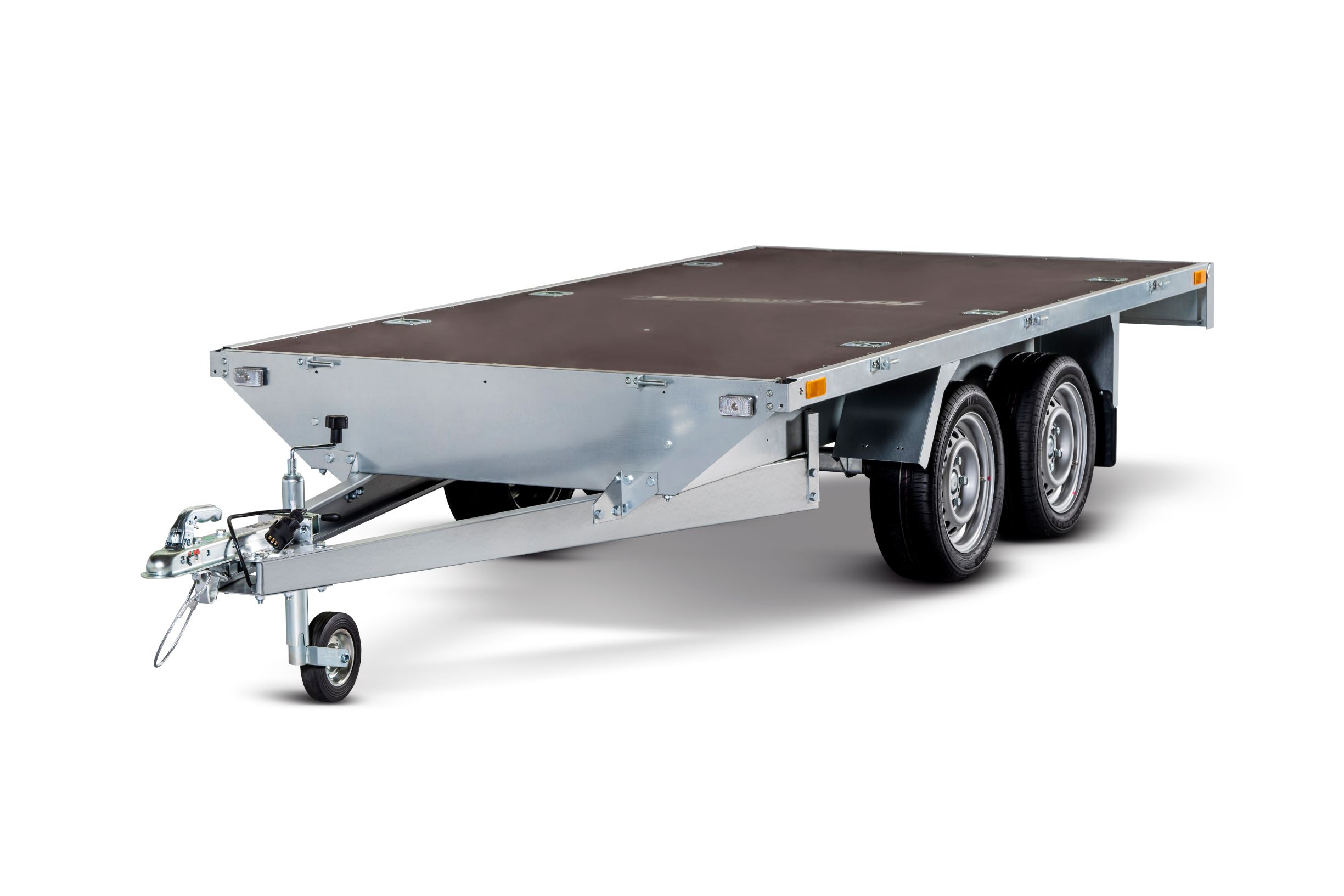

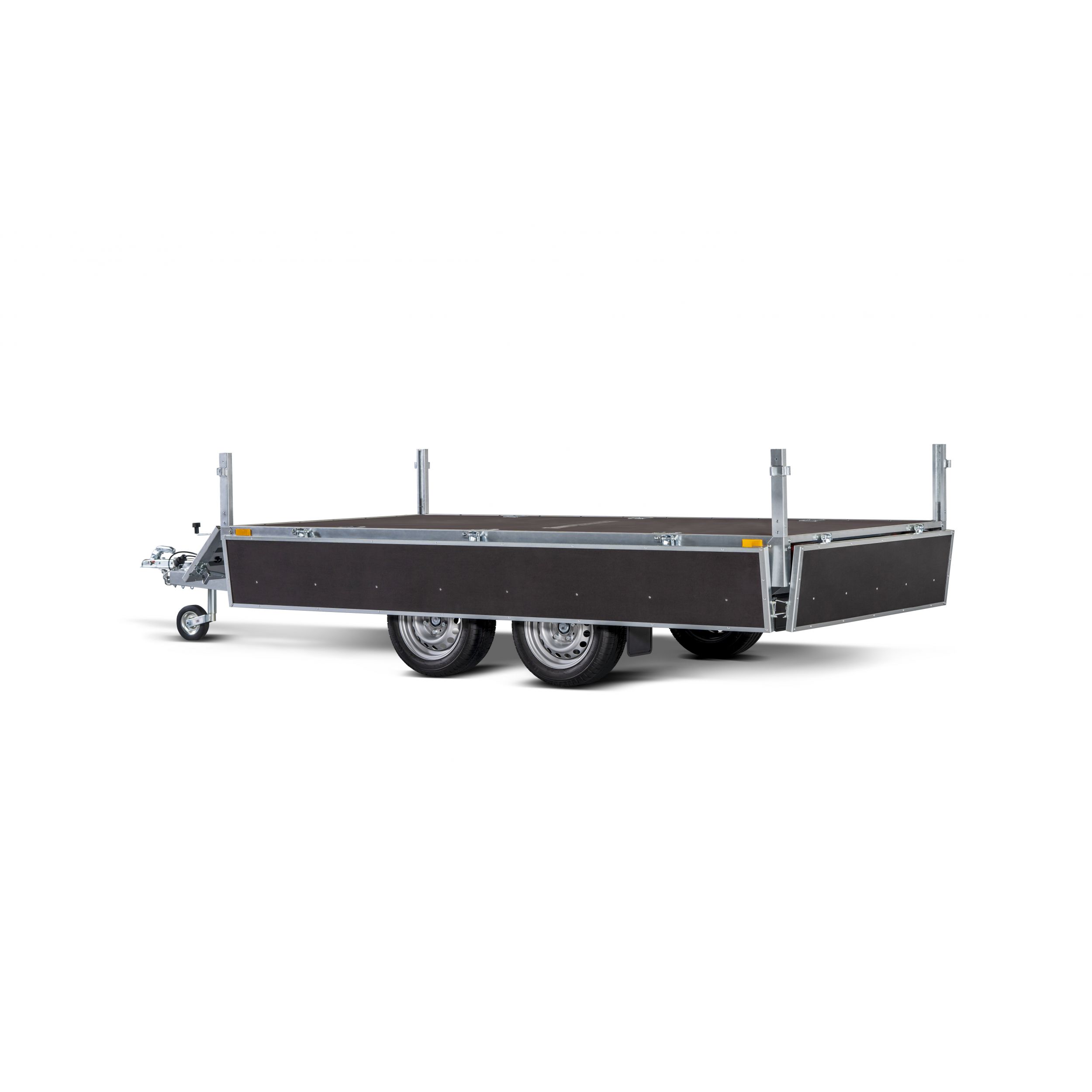

  • left and right sides are fully removable
  • towing hitch ball 750 kg made by STEELPRESS
  • floor is made of waterproof non-slippery plywood – thickness 9 mm
  • 2 axles unbraked 750 or 1300 kgs. STEELPRESS
  • mudguards with mudflap are made of polyethylene material
  • jockey wheel
  • wheels 155 R13
  • load securing buckle
  • side rolls helping install the tilt
  • electrical installation 12V (in accordance with traffic regulations)
  • 7 pin plug

Additional equipment:

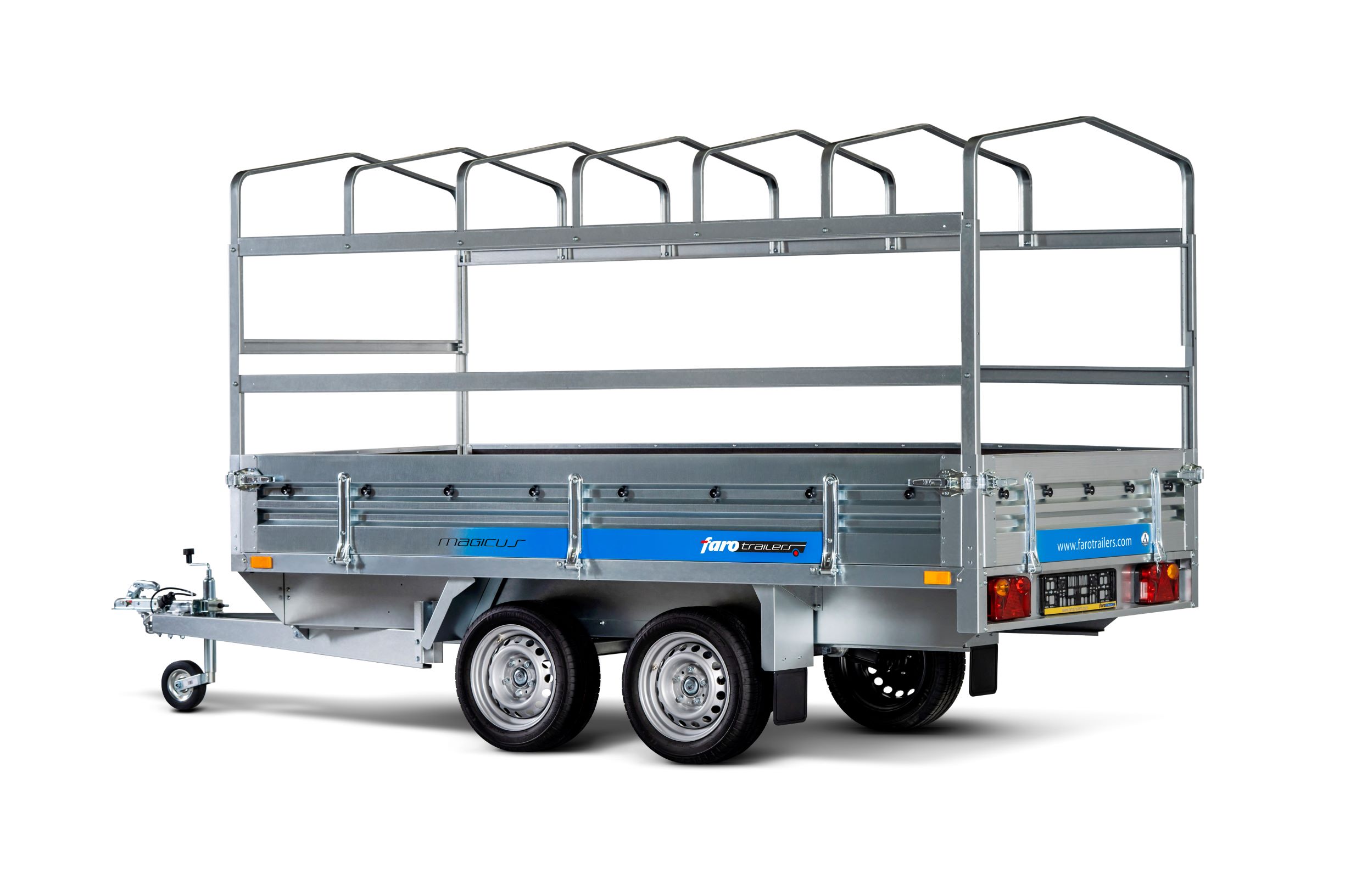

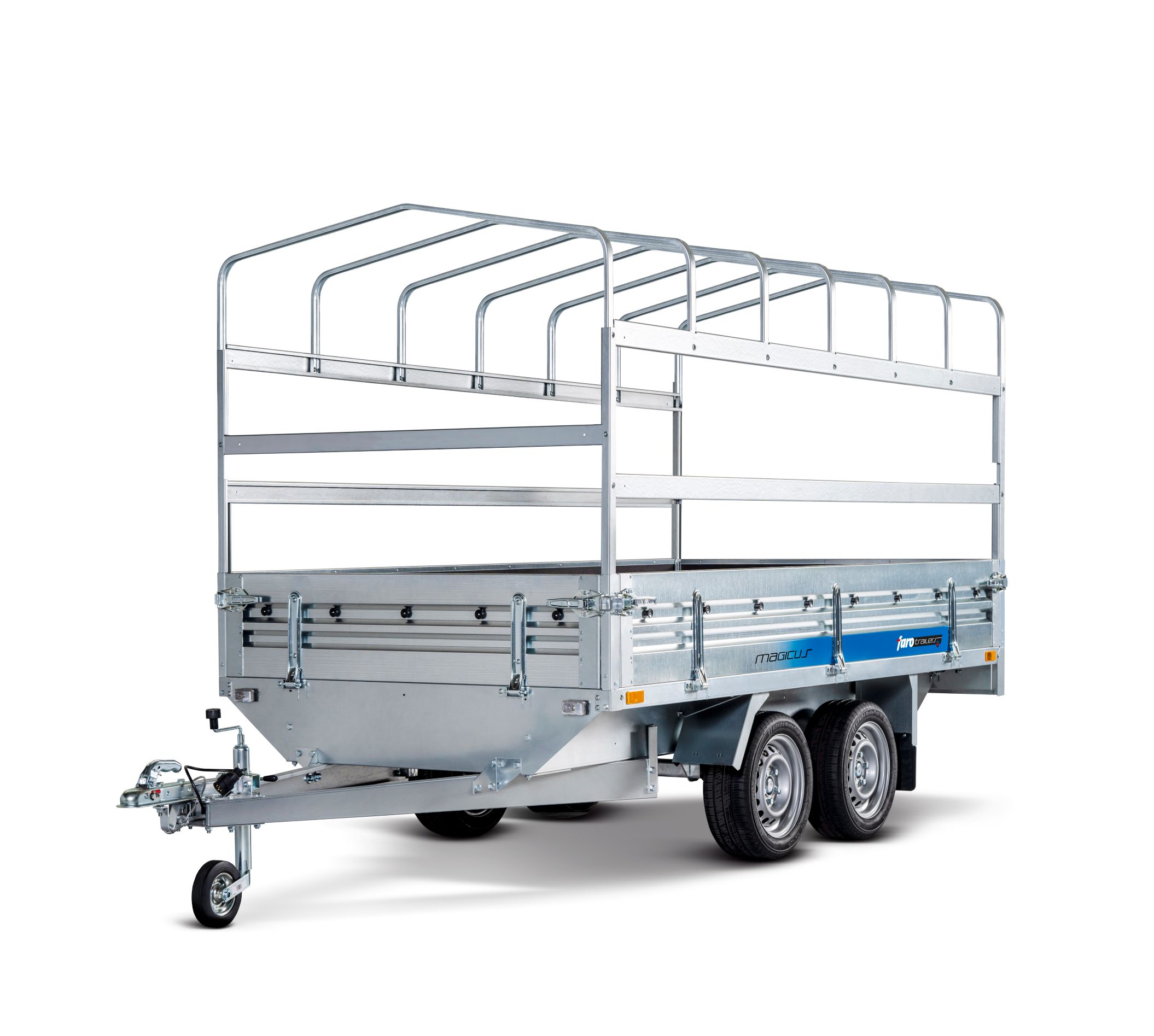

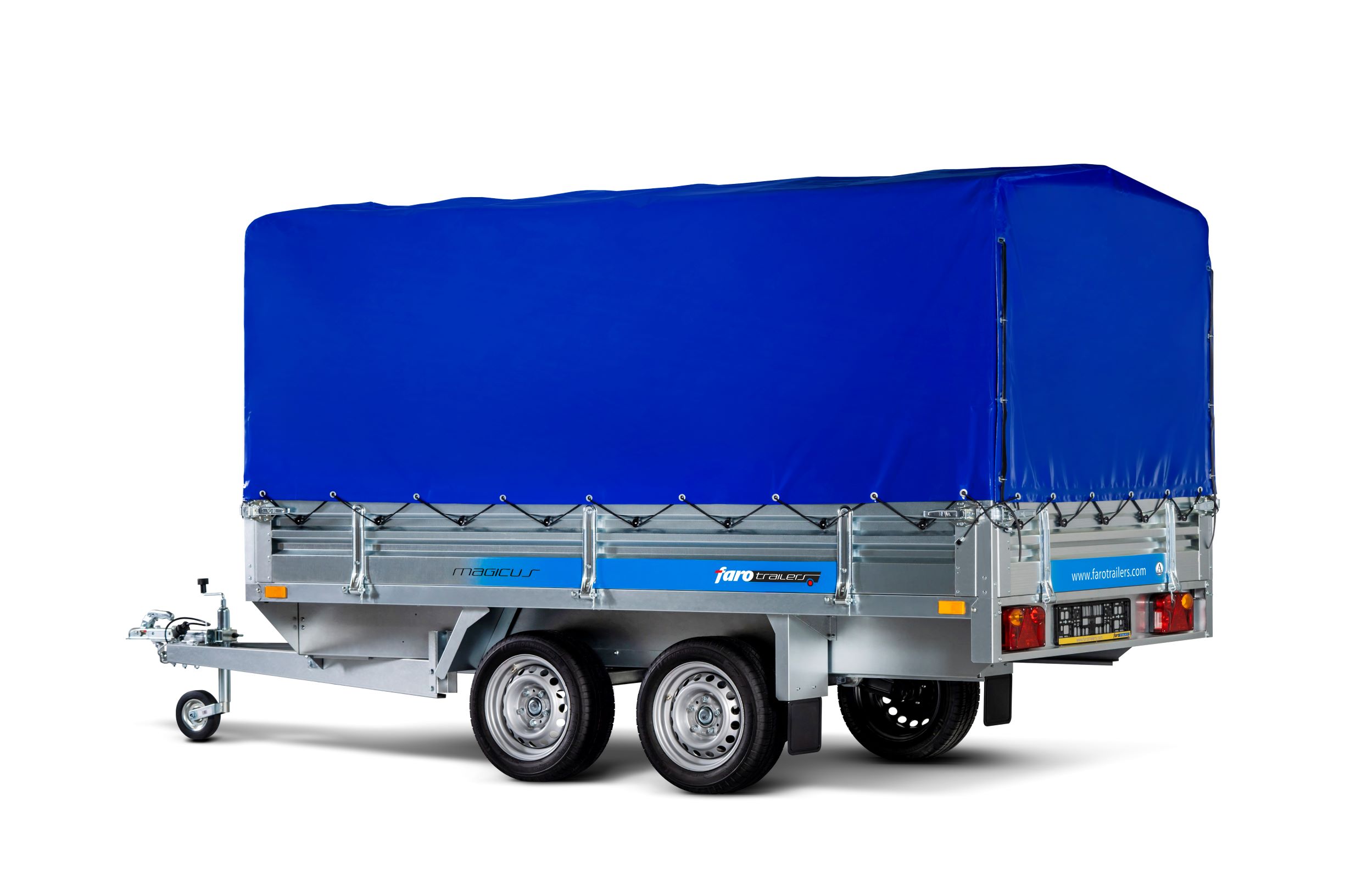

  • the frame with a cover H-1100mm, H-800 mm
  • flat cover
  • spare wheel with bracket
  • unbraked axle Steelpress 1000 kg with a compact bearings (especially recommended for trailer rentals)

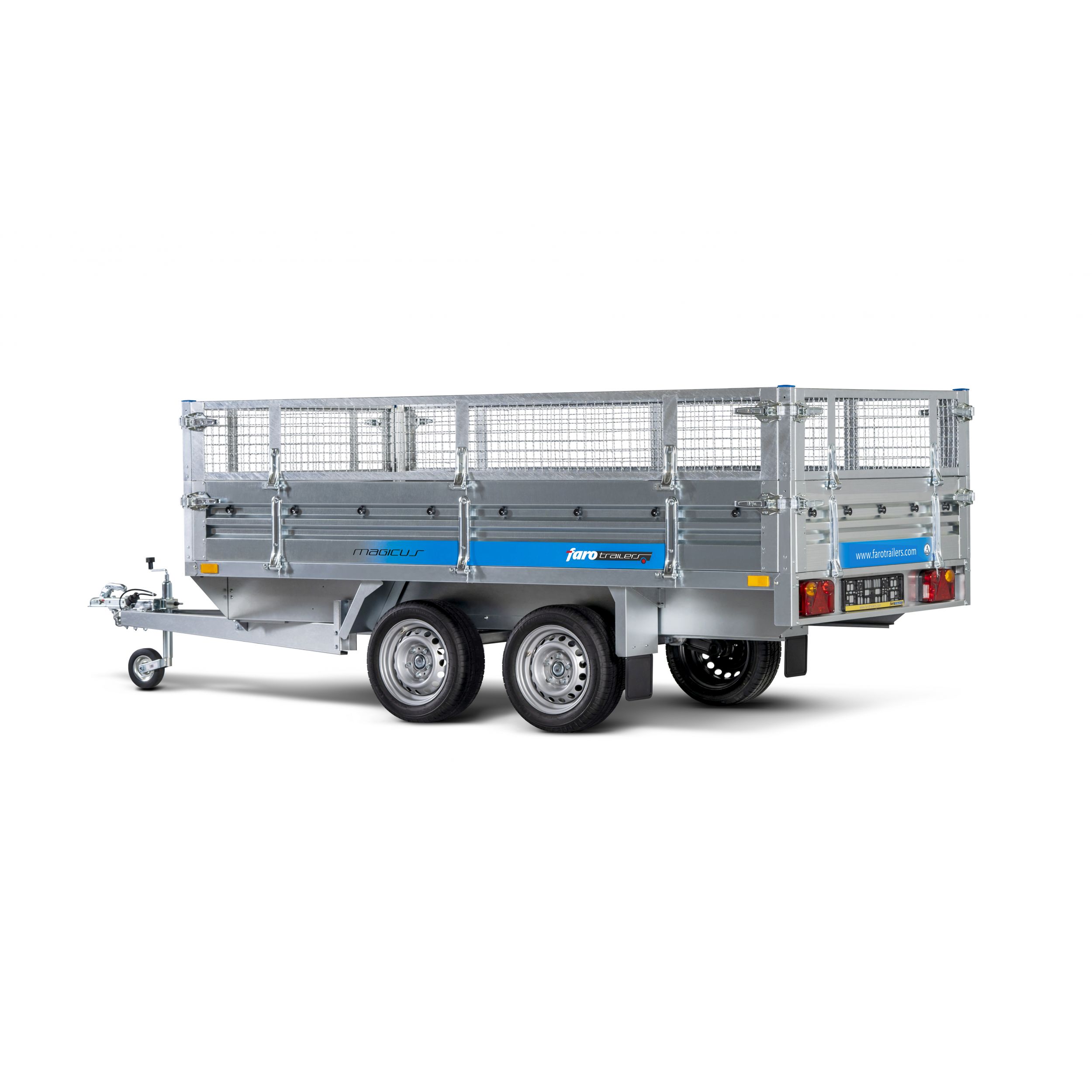

  • mesh sides extension

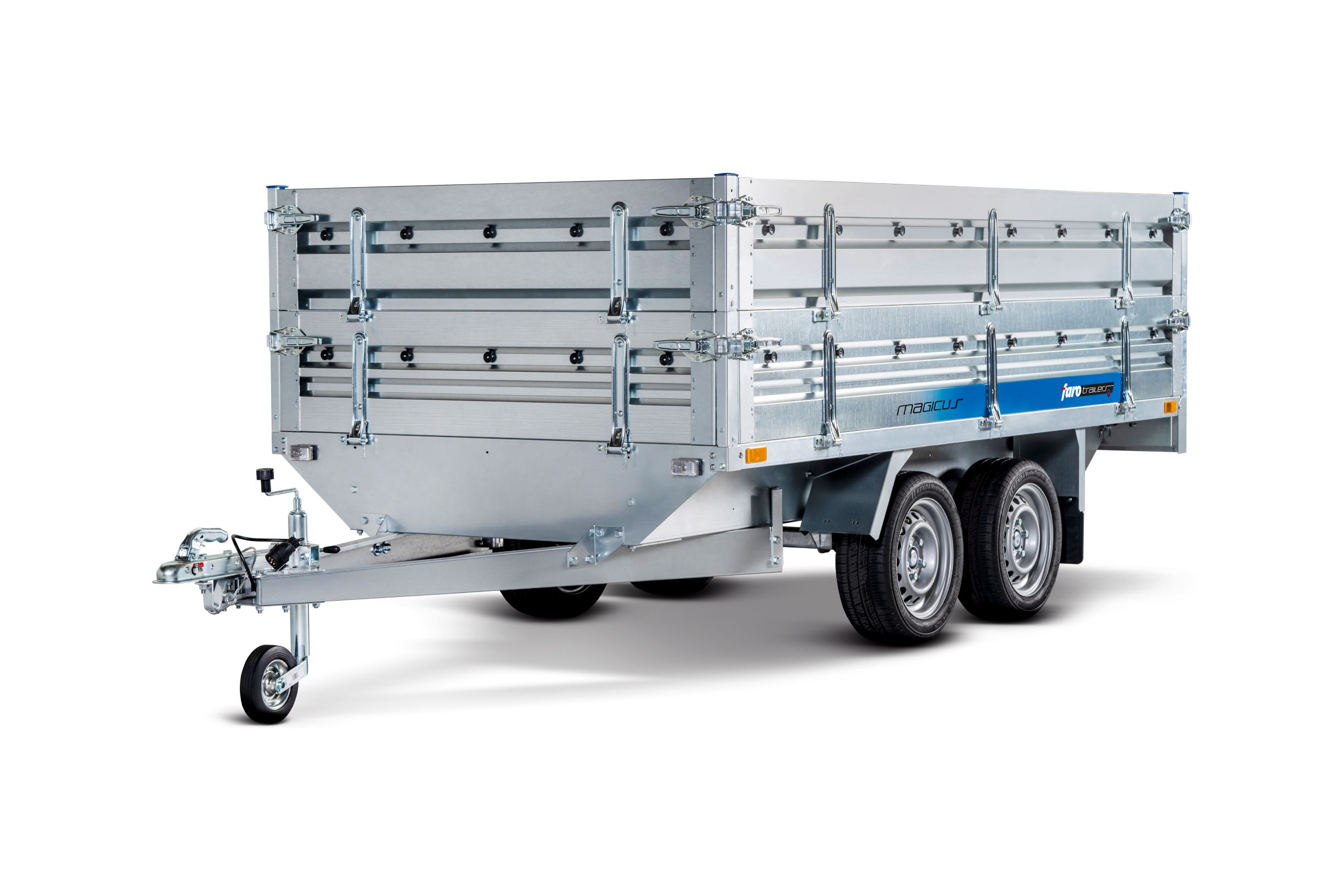

  • sides extension

Additional informations:

  • EU homologation (possibility of registration in any EU country)
  • 2 years warranty



This offer is solemnly for information. Considering constant development of our company the producer keeps the right to changes and technical modifications.

Product specification of Magicus

ParameterValue
Dimensions of cargo space (cm)263 x 150
Side height (cm)35
External dimensions of the trailer (cm)400 x 155
Permissible gross weight min. - max. (kg)500 - 750
Curb weight (kg)250
Capacity min. - max. (kg)250 - 500
Suspension2 unbraked axle 750 / 1000 kg
Wheels155/70R13 or 165/70R13
